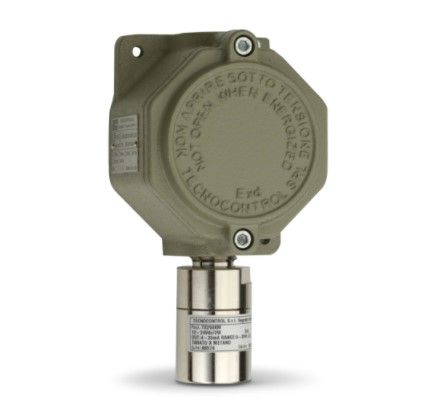

INIM FIRE TS293IG LPG detector (infrared) - 4÷20mA output and 4 relay outputs
- MT Code
- INM_TS293IG
- Manufacturer Code
- TS293IG
- Brand
- INIM FIRE
Description
LPG detector (infrared). 4÷20mA output and 4 relay outputs. Measurement range 0÷100 LIE percentage. ATEX ZONE 1
Gas detectors in explosion-proof enclosure for use in areas with the presence of potentially explosive atmospheres, certified CESI 03 ATEX 323 X (EN60079-0 and EN60079-1) are characterized by the following ATEX marking (Directive 2014/34/EU)
Power supply: 12÷24 Vcc - Atex marking: II 2G Ex d IIC T6 Gb - No. 1 linear output 4÷20 mA - Polarized plug-in terminals
Detected gas: LPG - Replacement cartridge: ZSI01G/EX - Measuring range: 0÷ 100% LFL - Calibration bottle: B0201 - Average clean air life: >5 years
Data Sheet
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | TS293IG | |
| Brand | INIM FIRE |
