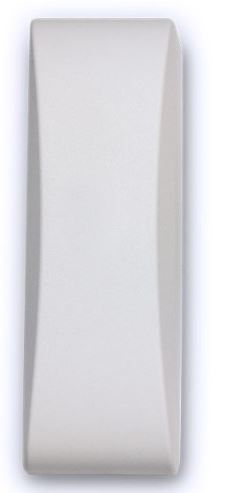

AWACS "APC MINI/B BIANCO" Miniaturized contact transmitter

The APC mini contact transmitter is a radio transmitter managed by a microprocessor for alarm signals generated by 2 types of contacts: “cord” contacts with digital pulse counting (4 fixed pulses), external NC magnetic contact or exclusive internal reed bulb. Input 1 is only for magnetic contact and sends the transmission both when opening and closing, indicating its status (OPEN/C - CLOSED/C) in the center. While input 2 can be programmed as a drawstring contact for shutters (roll-up windows) by sending an “ALARM” transmission or as a magnetic contact, with the sending of an AUX ALARM transmission only when opening. It is equipped with a tamper switch both on the lid and on the bottom. On board the card there is a second REED that aims to protect the device from tampering with a magnetic field in case an attacker wants to keep the REED of the magnetic contact closed. The control unit individually identifies the activation of each input. Radio range: 250 m in free area.
