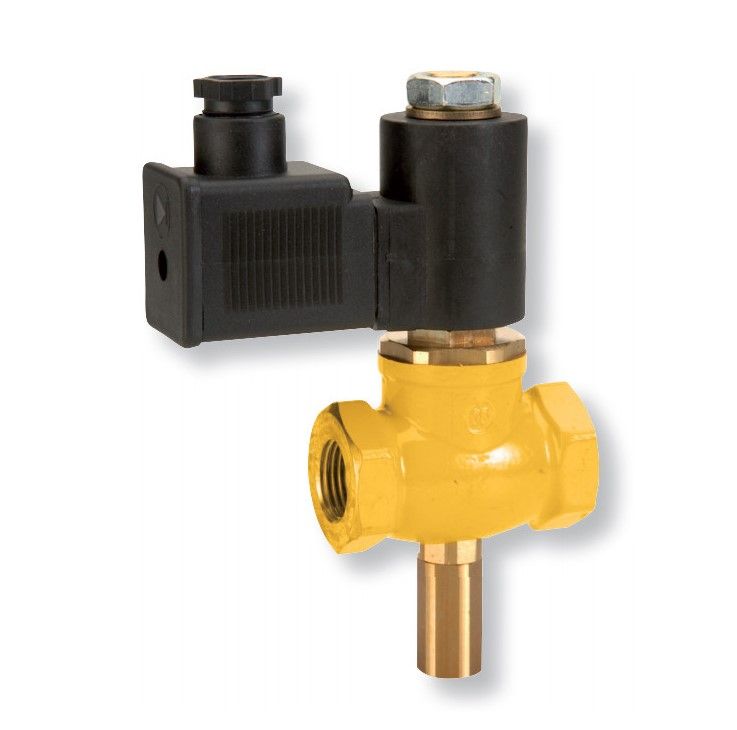

TECNOCONTROL VR945/12 Manual reset solenoid valve 12Vdc NC 2 inch 6 bar

MT Code: TCC_VR945/12
Manufacturer Code: VR945/12
Brand: TECNOCONTROL

Description

Manual reset solenoid valve 12Vdc NC 2 inch 6 bar

The GAS GAS solenoid valves were created to be combined with any gas or carbon monoxide detection system which provides, in the event of an alarm, a signal to close the main flow. Installed on the supply pipe and connected to a gas or CO detector, they interrupt the gas flow following a dangerous situation. The solenoid valve is normally positioned after a filter, outside the measurement environment and upstream of the regulating organs. It must be installed with the arrow (indicated on the body) facing the user. Resetting the valve (after checking that the coil is powered) is obtained by pressing the reset device axially after unscrewing the protection cap (to be screwed back on at the end of the operation).

Connections: 2 inches

Flow rate (mc/H): 80

Power: 6W

A (mm): 138

B (mm): 210

Approvals: Dir.97/23/CE-EN161

Power supply: 12 Vdc

Data Sheet
