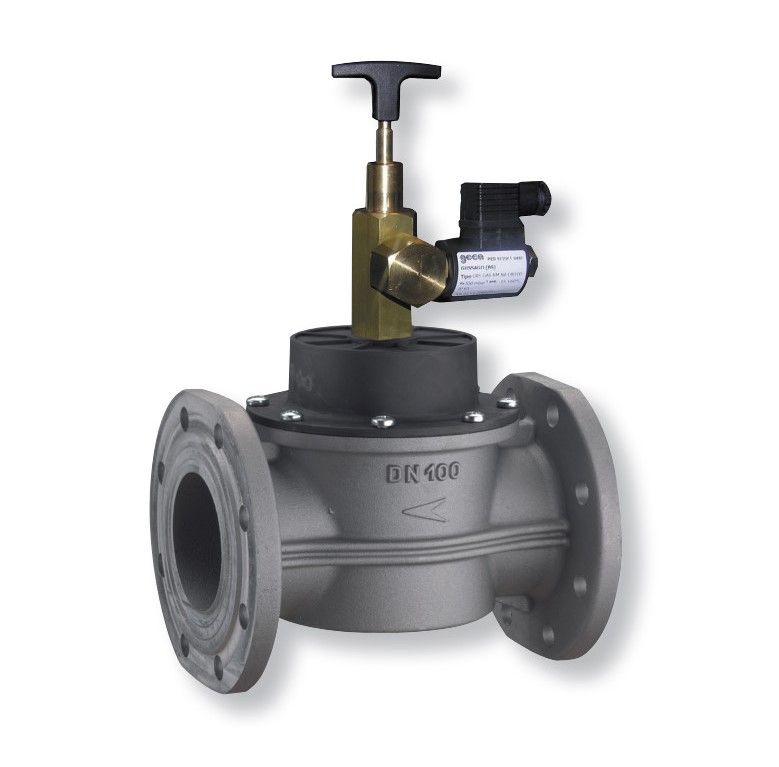

TECNOCONTROL VR580 Manual reset solenoid valve 230V NA DN 100

Manual reset solenoid valve 230V NA DN 100

The GAS GAS solenoid valves were created to be combined with any gas or carbon monoxide detection system which provides, in the event of an alarm, a signal to close the main flow. Installed on the supply pipe and connected to a gas or CO detector, they interrupt the gas flow following a dangerous situation. The solenoid valve is normally positioned, after a filter, outside the measurement environment and upstream of the regulating organs. It must be installed with the arrow (indicated on the body) facing the user. Resetting is achieved by pulling the shutter axially upwards using the appropriate knob.

Connections: DN100 4 inches

Flow rate (m3/H): 280

Power: 17 VA

A (mm): 265

B (mm): 420

Approvals: Dir.97/23/CE (PED)

Power supply: 230 Vac
