TECNOCONTROL VR946 Manual reset solenoid valve 230V NC DN65 6 bar

Manual reset solenoid valve 230V NC DN65 6 bar

The GAS GAS solenoid valves were created to be combined with any gas or carbon monoxide detection system which provides, in the event of an alarm, a signal to close the main flow. Installed on the supply pipe and connected to a gas or CO detector, they interrupt the gas flow following a dangerous situation. The solenoid valve is normally positioned after a filter, outside the measurement environment and upstream of the regulating organs. It must be installed with the arrow (indicated on the body) facing the user. Resetting is achieved by unscrewing the protective cap and screwing it onto the thread of the shutter stem and pulling axially upwards.

Connections: DN65 2 1/2 inches

Flow rate (m3/H): 170

Power: 9 VA

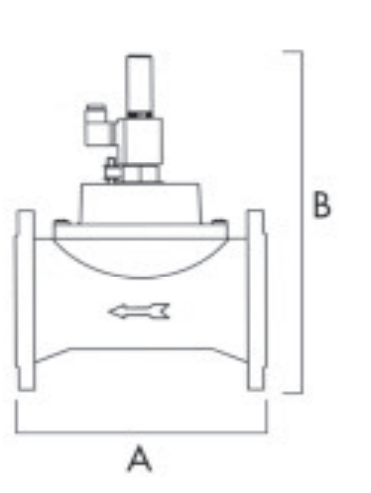

A (mm): 246

B (mm): 395

Approvals: Dir.97/23/CE-EN161

Power supply: 230 Vac
