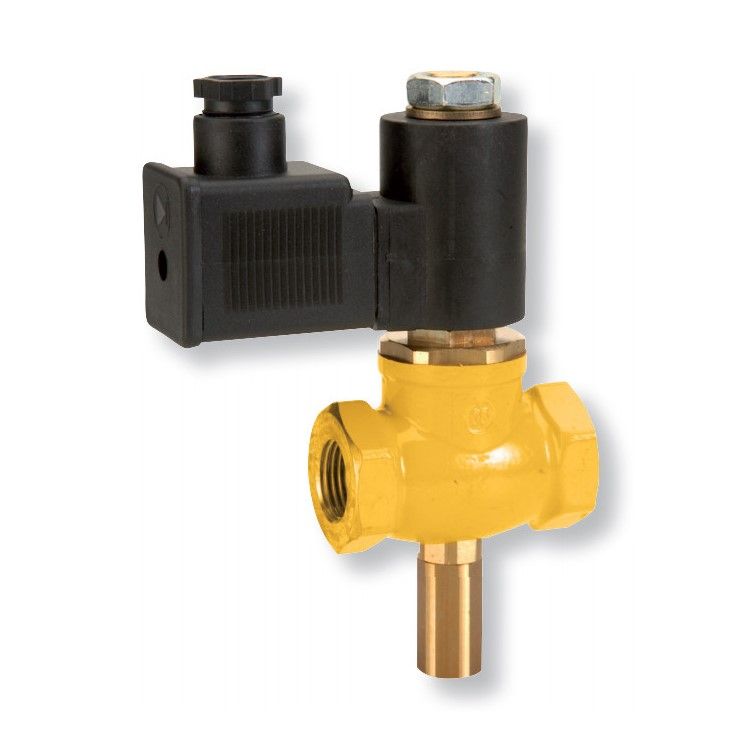

TECNOCONTROL VR940 Manual reset solenoid valve 230Vac NC 3/4 inch 6 bar

Manual reset solenoid valve 230Vac NC 3/4 inch 6 bar

The GAS GAS solenoid valves were created to be combined with any gas or carbon monoxide detection system which provides, in the event of an alarm, a signal to close the main flow. Installed on the supply pipe and connected to a gas or CO detector, they interrupt the gas flow following a dangerous situation. The solenoid valve is normally positioned after a filter, outside the measurement environment and upstream of the regulating organs. It must be installed with the arrow (indicated on the body) facing the user. Resetting the valve (after checking that the coil is powered) is obtained by pressing the reset device axially after unscrewing the protection cap (to be screwed back on at the end of the operation).

Connections: 3/4 inch

Flow rate (mc/H): 6

Power: 9 VA

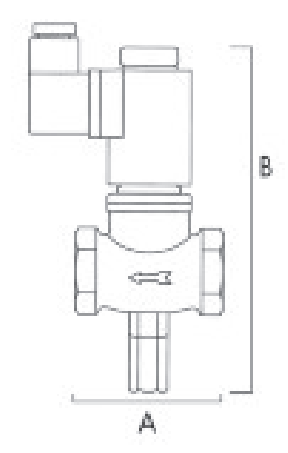

A (mm): 86

B (mm): 165

Approvals: Dir.97/23/CE-EN161

Power supply: 230 Vac
