TECNOCONTROL VR942/12Ex Manual reset solenoid valve NC 1" 12Vdc 6 bar ATEX
- MT Code
- TCC_VR942/12EX
- Manufacturer Code
- VR942/12Ex
- Brand
- TECNOCONTROL
Description

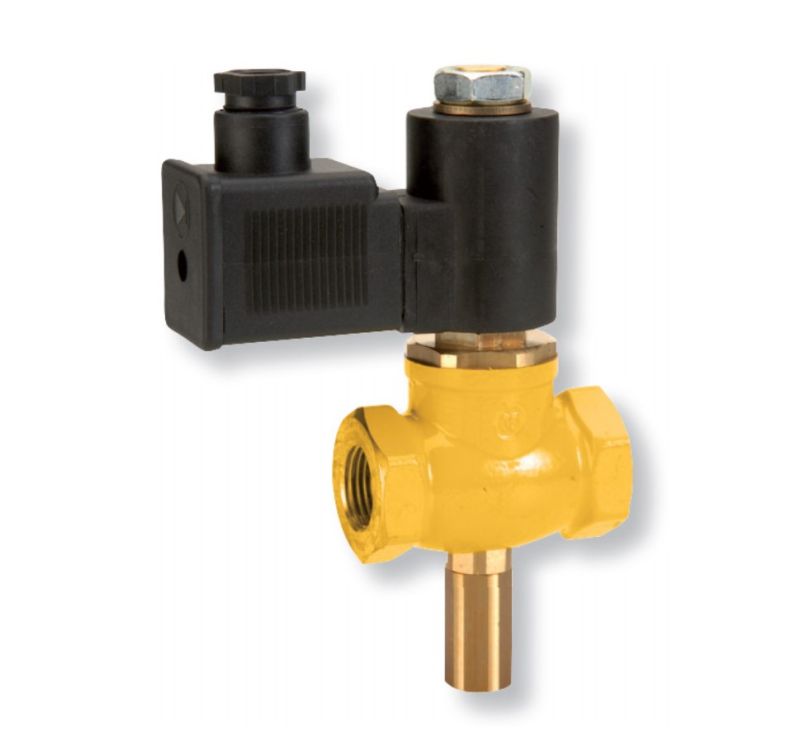

Manual reset solenoid valve NC 1" 12Vdc 6 bar ATEX
These special solenoid valves enrich the range described so far, standing out for their explosion-proof execution with ATEX certification, in fact they have been designed to avoid the risk of explosion in classified areas. Deflagration or explosion which could, in the case of any valve, be triggered by the device itself, precisely due to the effect of the electrical impulse that determines its operation.
ATEX II 3G Ex nA IIC T4 Gc II 3D Ex tc IIID T119 °C Dc IP65
Connections: 1 inch
Power: 19W

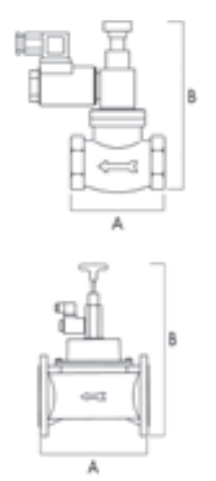

A (mm): 78
B (mm): 135
Power supply: 230Vca

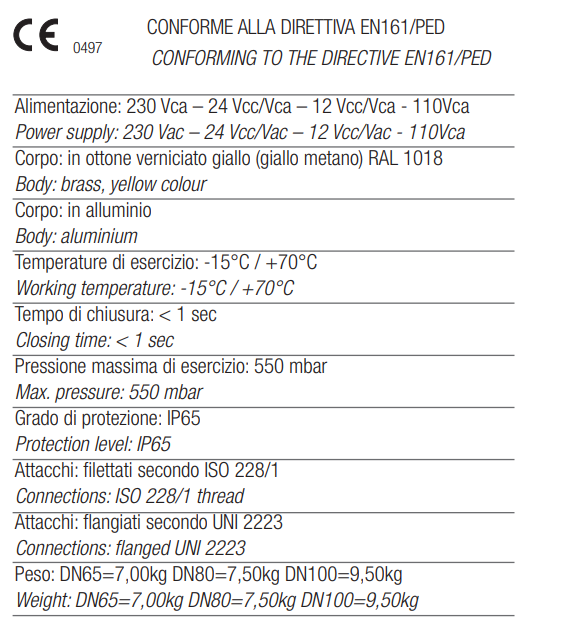

Data Sheet
| Codice Produttore | VR942/12Ex |
|---|---|
| Brand | TECNOCONTROL |
