TECNOCONTROL VR937Ex Manual reset solenoid valve NO DN80 230Vca 6 bar ATEX

MT Code: TCC_VR937EX
Manufacturer Code: VR937Ex
Brand: TECNOCONTROL

Description

Manual reset solenoid valve NO DN80 230Vca 6 bar ATEX

These special solenoid valves enrich the range described so far, standing out for their explosion-proof execution with ATEX certification, in fact they have been designed to avoid the risk of explosion in classified areas. Deflagration or explosion which could, in the case of any valve, be triggered by the device itself, precisely due to the effect of the electrical impulse that determines its operation.
ATEX II 3G Ex nA IIC T4 Gc II 3D Ex tc IIID T119 °C Dc IP65

Connections: DN80
Power: 17VA

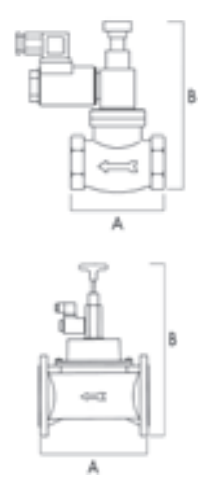

A (mm): 350
B (mm): 346
Power supply: 230Vca

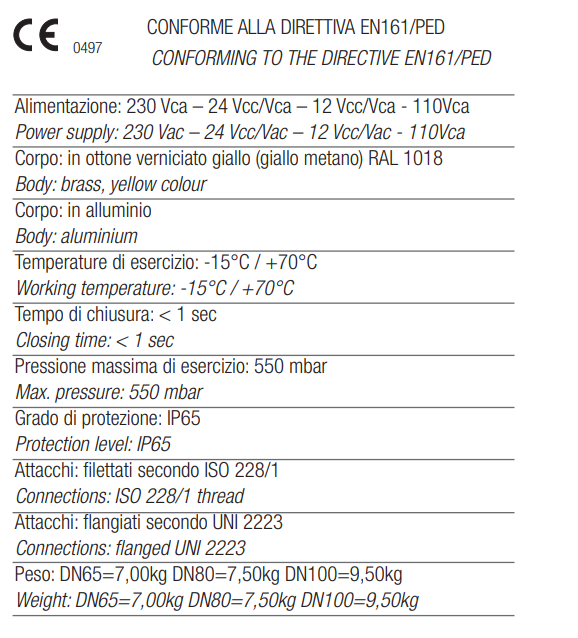

Data Sheet
