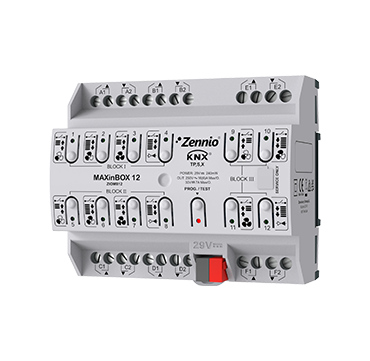

ZENNIO ZIOMB12 MaxInBox 12. KNX-12OUT, 16A
- MT Code
- ZNN_ZIOMB12
- Manufacturer Code
- ZIOMB12
- Brand
- ZENNIO
The MaxInbox 12 is a multifunction actuator for DIN rail mounting, designed to integrate perfectly into KNX automation systems. This device, referred to as ZIOMB12, offers unprecedented versatility in handling various types of loads.
Key Features
The MaxInbox 12 takes up only 6 DIN rail units and has multiple configurations to adapt to different needs:
- Up to 6 channels for roller shutters
- Up to 12 independent 16 A outputs, supporting capacitive loads
- Up to 3 control blocks for 2-tube fan coils
Control and Indications
The device allows manual control of the outputs thanks to the buttons on the cover. The LED indicators display the status of the outputs, ensuring a clear indication of operation.
Logical Functions
MaxInbox 12 includes 30 independent logic functions, significantly expanding the flexibility of automation in the KNX system.
Security and Compatibility
This actuator is compatible with KNX Secure, ensuring a high level of security for communications within the automation system.
accessories
The MaxInbox 12 is accompanied by accessories such as AC/DC adapters for roller shutters, facilitating integration with different types of loads.
| Codice a barre | 8000002729932 |
|---|---|
| Codice Produttore | ZIOMB12 |
| Brand | ZENNIO |
|
Datasheet MAXinBOX 12 EN
|
331.4 kB |
