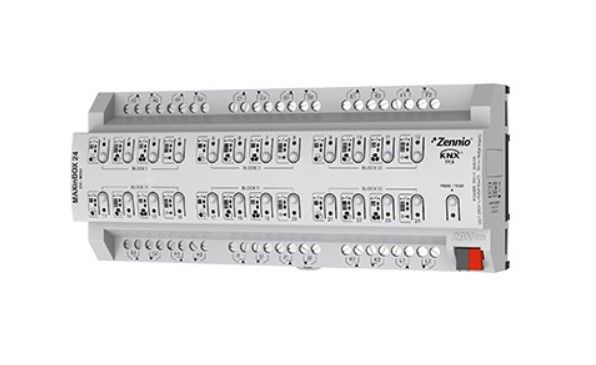

ZENNIO ZIO-MB24 MAXinBOX 24 - KNX Multifunction actuator with 24 outputs for DIN-rail
- MT Code
- ZNN_ZIO-MB24
- Manufacturer Code
- ZIO-MB24
- Brand
- ZENNIO
Description
MAXinBOX 24 - KNX Multifunction actuator with 24 outputs for DIN-rail
Multifunction actuator for DIN-rail (12 units) that offers multiple configurations of up to 12 shutter channels, up to 24 independent outputs of 16 A (capacitive loads supported) and up to 6 blocks of 2-pipes fan coil controller. It allows manual control of its outputs thanks to the push buttons on the cover. LED indicators can show the status of its outputs. It includes 30 independent logical functions to enlarge the versatility of the automations in KNX system. Accessories: AC/DC shutter adapters.
Data Sheet
Codice Produttore | ZIO-MB24 |
---|---|
Brand | ZENNIO |
Download
Datasheet MAXinBOX 24 EN Ed8
|
322.3 kB |
Manual MAXinBOX 24 16 v3 8 v3 EN v1.5 a
|
1.5 MB |
