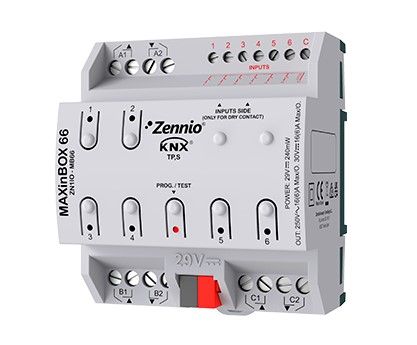

ZENNIO ZN1IO-MB66 MAXinBOX 66 - Multifunction Actuator 6Out. 16A C-Load 6 In

MAXinBOX 66 - Multifunction Actuator 6Out. 16A C-Load 6 In

Multifunction actuator. 6 outputs x 16A C-Load and 6 inputs. Multifunction sensor-actuator for DIN rail (4.5u) that offers multiple configurations of up to 3 shutter channels or 6 independent outputs of 16A, which all support capacitive loads. It allows manual control of its outputs thanks to the push buttons on the cover. It includes 10 independent logical functions. In addition, it incorporates 6 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Four room thermostats to control heating/cooling systems are included.
TECHNICAL DOCUMENTATION:
Datasheet EN / EL / RU / SV
Manual
