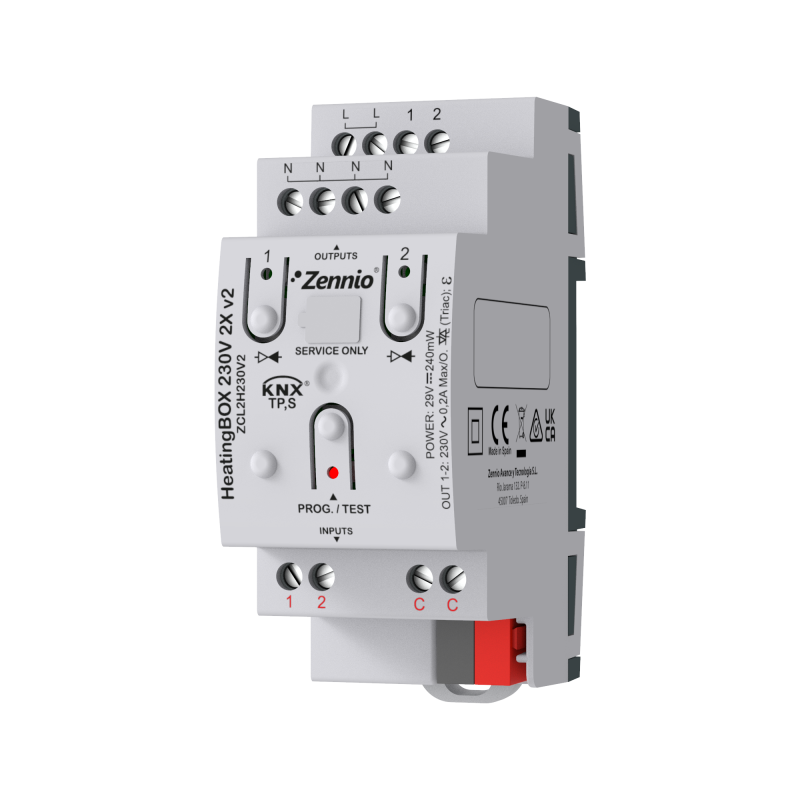

ZENNIO ZCL2H230V2 Max Inbox heating., 2 channels, 230 V

The ZENNIO ZCL2H230V2 is a control and management device for automation systems, designed to meet the needs of professionals in the sector.

Technical characteristics

This device is characterized by a series of features that make it ideal for complex applications.

Feeding

The device is powered through an input voltage of 230 V ~ 50/60 Hz.

Control Functionality

• It integrates an air conditioning controller with up to 4 independent thermostats.
• It includes a KNX-IP interface for communicating with the KNX bus.
• It has a logic module for managing complex logic.
• Equipped with a multifunction actuator with 12 inputs and 16 outputs (16 A C-Load), configurable as individual outputs, roller shutter channels or fan coil controllers.

Integration and Configuration

The device is designed to be integrated into existing automation systems, offering multiple configurations and customizations through the ETS software.

Protections and Security

• Overload and short circuit protection to ensure the safety and stability of the system.
• Reset button and status LED for monitoring the operating status.

Dimensions and Installation

The dimensions of the device are optimized for installation on a DIN rail, occupying only 12 DIN units.
