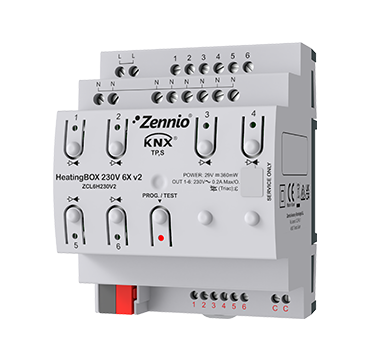

ZENNIO ZCL6H230V2 Max Inbox Heating, 6 channels, 230 V

The HeatingBox 230V 6X v2 is an actuator for air conditioning systems based on water pipes, designed to control up to 6 outputs for on/off valves operated at 230 VAC using a triac with short circuit protection.

Key Features

• Control of up to 6 outputs for on/off valves at 230 VAC.
• 6 analog-digital inputs.
• Module with 10 logical functions.
• Single power supply for all outputs and common neutral for easy valve installation.
• Manual control of outputs with LED status indication.

Independent thermostats

Each outlet is equipped with an independent thermostat, allowing precise and personalized temperature control.

Control Features

The actuator includes a module with 10 logic functions, offering flexibility and customization in the control of the air conditioning system.

Installation and Use

The actuator is designed for easy installation, with a single power supply for all outputs and a common neutral. Manual control of the outputs is possible with LED status indication.

Applications

The HeatingBox 230V 6X v2 is ideal for applications where precise and flexible control of air conditioning systems based on water pipes is required.
