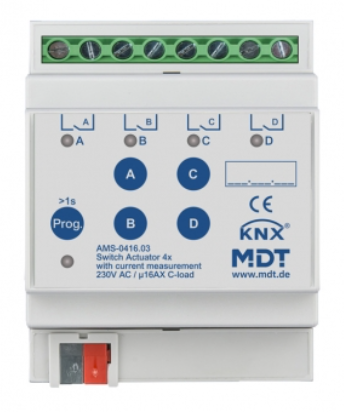

AMS-0416.03 MDT AMS-0416.03 4TE switch, REG 4-fach

4-channel switch, 4TE, REG, 16 A, 230 V AC, C load, standard, 140 µF, with current measurement. Standard version with bistable relay current max 16 A, maximum capacitive 140 µF. Wide functional expansion. Built-in True RMS current measurement (current, kW). Current measurement range from 10 mA to 16 A. Built-in energy consumption (Wh / kWh) counter function. Fast response <1 s in master/slave operation. Manual function indicators and channel LED indicators. Time functions (on/off delay, staircase light function). Inputs and outputs for threshold values. Logical connections, 8 scenes per channel. Operating hours counter. Advanced state functions (inverted, cyclic, blocked). Priority/forced control with automatic fallback time. Adjustable behavior in the event of bus voltage failure/restoration. These are attached to the L connection terminals, 4 mm² / 2 x 2.5 mm². 3 year product warranty.
