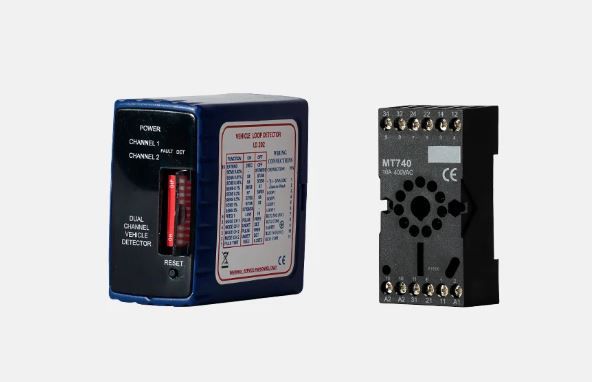

DOMOTIME LD202 Metal mass detector - Two-channel magnetic loop sensor 12-24 Vac/dc

Metal mass detector - Two-channel magnetic loop sensor 12-24 Vac/dc

The Domotime LD202 two-channel magnetic coil detector is able to manage one or two magnetic turns and to provide an output signal when a reasonably sized metal body (car, motorcycle, etc.) passes over the turns themselves. It therefore also allows the control of devices such as traffic lights, gates, barriers, etc. The detector is equipped with two relays: The pulse relay can provide an output signal (1 or 0.2 seconds) when the sensor detects a vehicle entering or leaving the loop; The presence relay can provide an output signal as long as the sensor detects a vehicle above the loop. The detector is also adjustable in frequency and sensitivity. The frequency allows multiple detectors to be installed next to each other without causing interference. The sensitivity allows the sensor to detect metal masses of different sizes. Use it with Domotime LDC06 and LDC10 magnetic coils. Power supply: 11-26 VCA/DC Detector adjustment range: 15 ÷ 1500 μH Number of connectable coils: 2 Number of relays: 2 Pulse relays: 0.2 to 1 second Presence relay: only in presence Relay capacity: 0.5 A/230 V Operating temperature: -40°C/+ 80°C Dimensions: 80 x 79 x 40 mm Weight: 110 g
