SENSITRON S2624ME METHANE detector. 4-20 mA. 0-100% LFL
- MT Code
- SNS_S2624ME
- Manufacturer Code
- S2624ME
- Brand
- SENSITRON

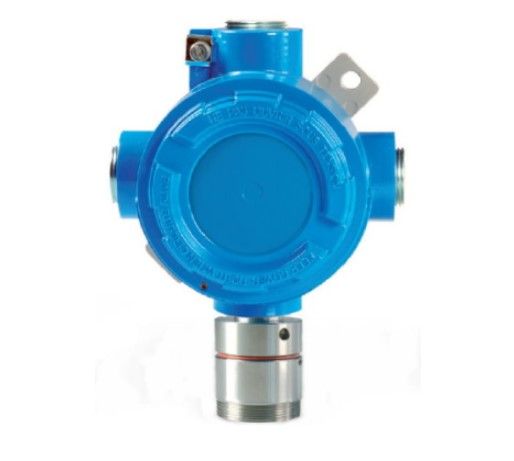

The SMART3G-D2 gas detector is designed to meet industrial requirements; the enclosure is explosion proof and can be installed in ATEX Zone 1 and, when equipped with dust adapter, in Zone 21.
The sensing element is placed in the stainless steel head with a 48 mm diameter.
The infrared sensors employed for the flammable and refrigerant gas detection are poison free, with high accuracy and a long lifetime.
The gas detector has a 12-24 Vdc power supply and a standard 4-20 mA 3-wires output and three relays. Optionally, the SMART3G-D2 can be equipped with serial RS485 communication.
The aluminum enclosure has dimensions 145 x 187 x 108 mm. The enclosure has 3 cable entries 3/4” NPT threaded. The SMART3G-D2 features a 7-segment display for real-time concentration visualization and Hall effect sensors for non-intrusive field calibration.
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | S2624ME | |
| Brand | SENSITRON |
