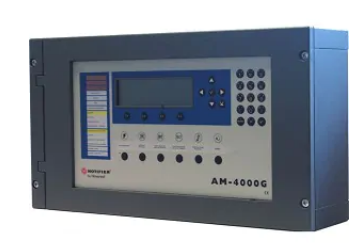

NOTIFIER AM4000G ADDRESSED GAS DETECTION UNIT - 4 LOOPS

Microprocessor control unit for the management of gas detection devices equipped with four loop lines. Each loop allows the connection of 99 proportional 4-20mA gas detectors through the IIG4N or MMT modules and 99 input and output modules. The control unit has a supervised output. one for general alarm. one for general fault and two early alarm outputs with programmable thresholds. It is equipped with a graphic LED display with 8 lines and 40 columns and an alphanumeric keyboard. It allows the configuration of 400 programmable logic groups using AND operators. OR. OF THE. XGRP. etc. is 150 zones. Historical archive of 999 events in non-volatile memory. For partial management of the system, it is possible to connect the LCD6000T series remote display panels. Configurable by keyboard or software PK4000G. Possibility to manage the control unit using supervision software with an optional SIB600-OEM serial communication interface or SIB600W Ethernet network. CEI-ABI communication protocol or. on request. MOD-BUS. Possibility to print the event archive and the system's point status from the control panel's menu using the SIB600W. or online with the 81007-801N interface connected to the SIB600-OEM board. Can be mounted on the wall.
