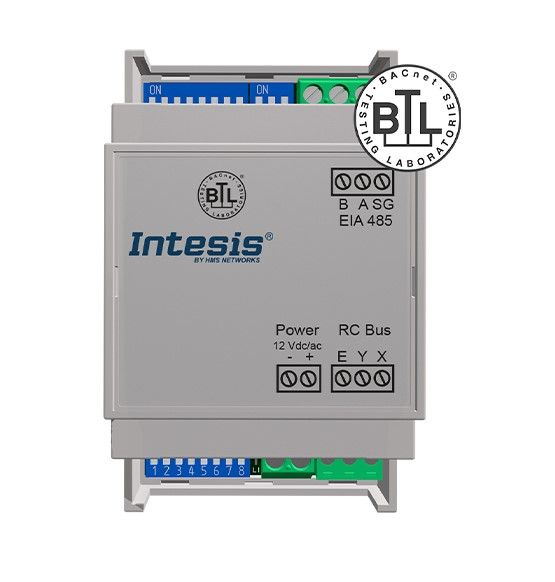

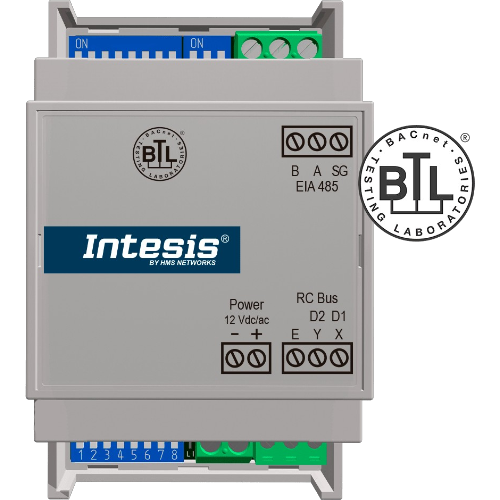

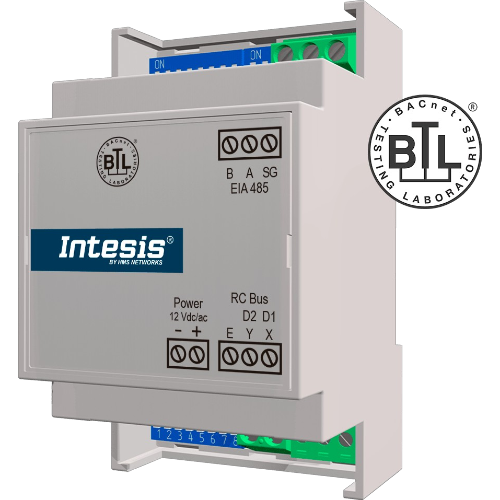

INTESIS INBACMID001I100 Midea Commercial and VRF systems to the BACnet MSTP interface

The Midea-BACnet gateway enables fully bi-directional communication between Midea Commercial and VRF units and BACnet MSTP networks.

CHARACTERISTICS
The BTL brand guarantees full interoperability with BACnet devices.
Only supports BACnet MS/TP.
Configuration from on-board DIP-switch.
Quick and easy installation (connect and set up the DP-SW).
12 VDC/AC power supply required.
Simultaneous control of the AC unit via manufacturer remote control and BACnet MS/TP.
Small dimensions 93 x 53 x 58 mm.
Mountable on DIN rail, wall or even inside the indoor unit in some AC models.
Abstraction of properties and functionality of air conditioning units as fixed BACnet objects.
The presence function allows energy saving. The costs relating to HVAC systems in a building are among the highest and this type of function allows them to be reduced.
Total control and monitoring of the AC unit from BACnet, including internal variables of the AC unit, operating hours counter (for checking filter maintenance) and error indication.

Description
The gateway is wired directly to a Midea indoor unit. This allows not only the control of main AC functions such as operating mode, fan speed, temperature setpoint, monitoring of errors, alarms and some internal variables. The product can be installed and configured in a very short time. It's just a matter of wiring the gateway to the AC unit, connecting the 12 VDC/AC power supply and configuring the DIP-SW accordingly. No configuration software is required.
