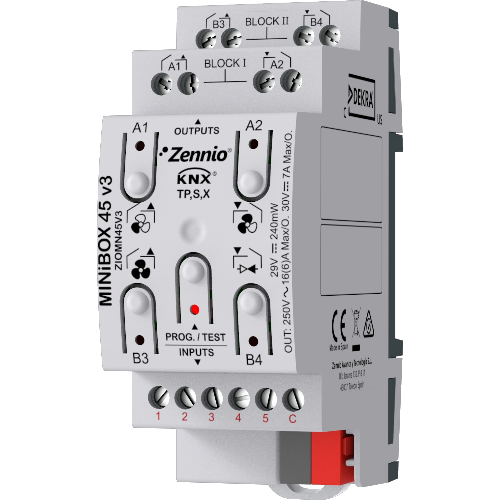

ZENNIO ZIOMN45V3 MiniBox 45V 3-4out, 16A/5 in AD

The MiniBox 45 v3 is a multifunction actuator designed for installation on a DIN rail, ideal for industrial and residential applications. This device replaces and improves the functionality of the previous MiniBox 45 v2 model.

Key Features

The MiniBox 45 v3 has 4 outputs (16 A C-load) that can be configured in different ways, for example as channels for shutters, individual outputs or as a controller for two-tube fan coil systems.

Output Configurations

• Configurable outputs as roller shutter channels
• Individual outputs for controlling different loads
• Controller for two-tube fan coil systems

Manual Control and Logic

The device allows manual control of the outputs through the buttons on the cover. In addition, it includes a logic function module that allows in-depth customization of the actuator's behavior.

Analog-Digital Inputs

The MiniBox 45 v3 is equipped with 5 analog-digital inputs that can be configured as:

• Binary inputs for sensors and buttons with free potential
• Inputs for temperature probes
• Inputs for motion sensors
• Thermostats for controlling heating and cooling systems

Integration with KNX

The device is compatible with the KNX protocol and supports the functionalities of KNX Secure, ensuring secure and reliable communication within the automation network.

Additional Features

The MiniBox 45 v3 includes additional features such as the ability to precisely monitor and control loads, making it a versatile and reliable option for different applications.
