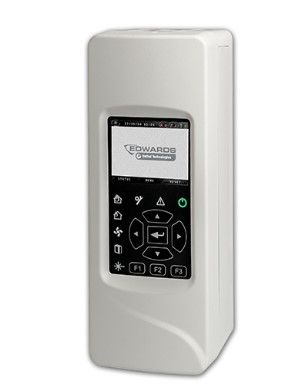

ARITECH FIRE FHSD8320 ModulaSER Command Module with interface for networking on a SenseNet network

Modulaser Control Module with interface for networking on the SenseNet network. Maximum 127 nodes. Generality Modulaser, represents a scalable aspiration smoke detection solution, which simplifies installation and maintenance and is positioned beyond traditional air sampling detectors

. The basic configuration includes at least two modules, a display module and a detector module. Each detector module can handle up to 250 meters of sample tube. The display module and detector modules communicate via RS-485 serial.
The display modules are available in three configurations: Standard with TFT color display, status LED and navigation buttons, Minimum with only status LED and Command similar to the standard but with additional functionality for controlling various modules on the SenseNet network. The minimum and standard display modules can support up to 8 detector modules, while the command display module can support up to 127 modules through the SENETnet network

display module The command
display module has a user interface consisting of a TFT color display, navigation buttons and status LEDs. The configuration of the command display module (and associated detectors through the SenseNet network) can be done through the user interface or through a computer that uses the Remote software. The TFT color display supports simple operations such as modifying configuration options through a menu structure, but also advanced features such as displaying the recording of data in graphic format.
The Command Display Module supports up to 127 modules through the SENETnet network. The 127 modules can be in any combination between ModulaLaser modules, as well as Micra and HSSD2 detectors. The use of the Command Display Module creates an easy-to-use central viewing point from which it is possible to access all modules/detectors on the network with the notification of all alarms and

Ideal solution
Thanks to advanced features that make it practically immune to dust and dirt, the Modulaser is ideal for use in hostile environments that could render other types of smoke detectors ineffective. Modulaser's innovative laser detection technology allows early detection, without the risk of annoying alarms normally associated with high-sensitivity smoke detectors, while the exclusive environmental compensation technology adds a high degree of reliability to a solid detection
