ARITECH FIRE FHSD8300 Modulaser. simple LED display module for managing a cluster of 8 sensor modules

Modulaser. simple LED display module. for the management of a cluster of 8 sensor modules. both local and remotable via RS485 SenseNet+

Generality
Modulaser, represents a scalable aspiration smoke detection solution, which simplifies installation and maintenance and is positioned beyond traditional air sampling detectors. The basic configuration includes at least two modules, a display module and a detector module. Each detector module can handle up to 250 meters of sample tube. The display module and detector modules communicate via RS-485 serial.
The display modules are available in three configurations: Standard with TFT color display, status LED and navigation buttons, Minimum with only status LED and Command similar to the standard but with additional functionality for controlling various modules on the SenseNet network. The minimum and standard display modules can support up to 8 detector modules, while the command display module can support up to 127 modules through the SENETnet network

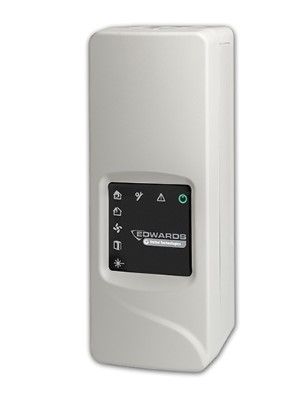

LED display The Modulaser
LED display module offers an economical alternative to the standard display module. While the standard display module has a user interface consisting of a TFT color display, navigation buttons, and status LEDs, the minimum display module has only status LEDs. Depending on the installation requirements, only the status LEDs may be sufficient to indicate faults or alarms locally while the system will continue to report faults and alarms through the relay or APIC outputs. Due to the absence of a screen and navigation buttons, the minimum display module (and the associated detector modules) must be configured via a computer using remote software or via SenseNet using a

Ideal solution
Thanks to advanced features that make it practically immune to dust and dirt, Modulaser is ideal for use in hostile environments that could render other types of smoke detectors ineffective. Modulaser's innovative laser detection technology allows early detection, without the risk of annoying alarms normally associated with high-sensitivity smoke detectors, while the exclusive environmental compensation technology adds a high degree of reliability to a solid detection
