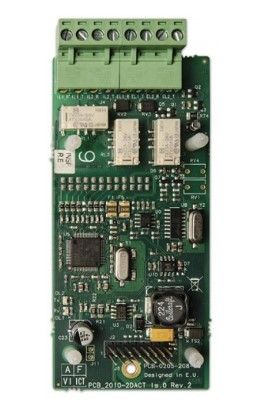

ARITECH FIRE 2010-2-DACT Module for digital alarm communication

Module for digital alarm communication. Direct connection on a public PSTN line with Contact ID protocol transmission to an operations center. Installation of the module inside 2X series control units. Optional connection of an ATS7310 card for GPRS line connection. EN54-21 Certification

General Information The 2010-2-DACT digital alarm transmission module is an accessory for sending alarm signals with the Contact ID protocol between a compatible detection center and an operational control and monitoring center

Functionality
The DACT provides communication between a compatible fire detection center and a monitoring and control center (CMS) through a public switched telephone network (PSTN). The DACT uses the ID transmission protocol (CID) and is able to send operating reports to up to 6 operating centers in a single, multiple or alternate way. As an option, the DACT can support an additional GPRS module (the ATS7310) to ensure the sending of signals also

Assembly and connection
The module is located directly on the main board of the compatible version 3 control units with both small and standard cabinets. No additional wiring is required for installation. The connection to the PSTN line is made with a plug-in connector
