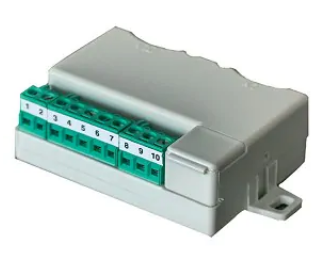

NOTIFIER CMA11E MODULE 1 INPUT 1 OUTPUT

Module with 1 miniature input and 1 output. The entrance is controlled on a guarded line. The output can be controlled or with potential-free exchange contact. The choice of the output type is obtained by selecting two dip-switches. Compatible with both CLIP and Advanced control panels. The form, using two consecutive addresses, is addressed by means of rotary selectors numbered from 01 to 99. It is equipped with two green and red LEDs that will indicate the status of the module. CPR certificate in accordance with EN 54-18. 15-32 Vcc power supply. Quiescent current of 500 microA and 750 microA with active LED. Operating temperature from 0°C to +50°C. Relative humidity up to 93 percent.
