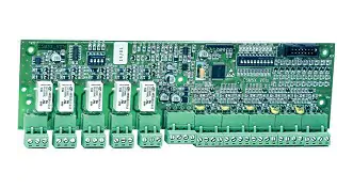

NOTIFIER MCX-55ME MODULE 5 INPUTS 5 OUTPUTS

Module with 5 inputs and 5 outputs. Each input can be connected to a supervised line with two or four conductors. Each output has a potential-free exchange contact. Compatible with both CLIP and Advanced control panels. The module uses 10 consecutive addresses of the 99 available per line, addresses programmable via dip-switch. Unused inputs or outputs can be excluded. CPR certificate in accordance with EN 54-18. 15-30 Vcc power supply. 4mA idle current with flashing LED. Operating temperature from 0°C to +50°C. Relative humidity up to 93%.
