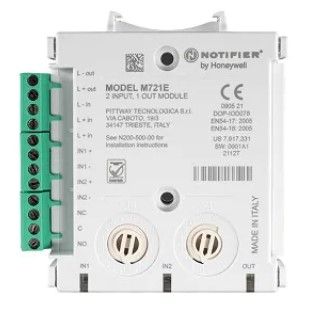

NOTIFIER M721E MODULE 2 INPUTS 1 OUTPUT

Module with two inputs and one output that can be used with addressed analog control panels. The controlled inputs will be on a supervised line. The output has a potential-free exchange contact. The module, using three consecutive addresses, is addressed by means of rotary selectors numbered from 01 to 159. This is equipped with a flashing green LED under normal conditions and a fixed alarm light. Integrated DIN bar support. The module has a short circuit isolator. CPR certificate in accordance with EN54 standards parts 17 and 18. 15-30 Vcc power supply. Quiescent current of 340 microA and 600 microA with active LED. Operating temperature from -20°C to +60°C. Relative humidity up to 95%.
