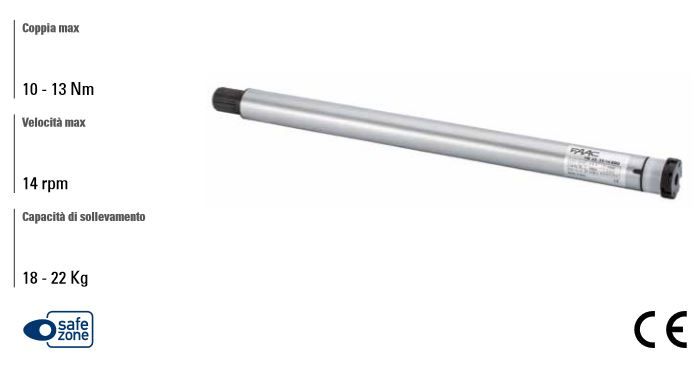

FAAC 130016 TM35 13/14 ER-O TUBULAR MOTOR WITH OBSTACLE SENSOR

TM35 13/14 ER-O TUBULAR MOTOR WITH OBSTACLE SENSOR

TECHNICAL CHARACTERISTICS: Max torque 13 Nm Lifting capacity 22 Kg Max speed 14 rpm Frequency of use 20% Continuous Use Time (ROT) 240 s 230V~ 50Hz mains supply voltage Max power 170 W Max run 46 Motor diameter 35 mm Length with adapter 540 mm Degree of protection IP 44

Lifting capacity means the maximum weight that can be lifted with a 40 mm diameter winding tube including winding coefficient and friction.

The package includes: - tubular motor with integrated receiver (with connection cable length 2.70 m) and integrated obstacle detection - instruction manual
