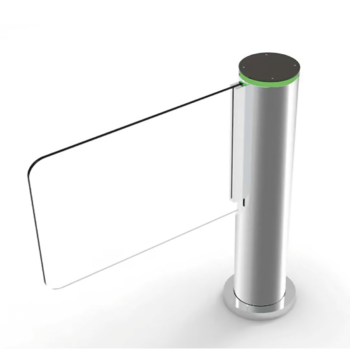

CDVI SWINGGATE Bidirectional motorized door

SWING GATE motorized flag door in AISI 304 stainless steel and security plexiglass door. It consists of a cylindrical stainless steel column containing the motor with encoder for programmable opening angles. The design of this swing gate makes it an elegant and perfect product to be installed in any environment, both anti and modern. Technical Specifications Power supply 220Vac Output voltage 24Vdc/40W Transit speed 40 people per minute Monodirectional/bidirectional opening Opening/closing speed from 1 to 2sec Door movement from 0 to 180° Mono and Bidirectional transits Door width 780mm Door height 1400 — 1600 — 1700 gap passage 900mm Operating temperature -40° to +70°C Input (COM-NC-NA) Acoustic and light signaling Blue, Red and Green status LED Door dimensions: 780 x 400mm Gate dimensions: 944 x Ø168mm Gross Weight: 45Kg
