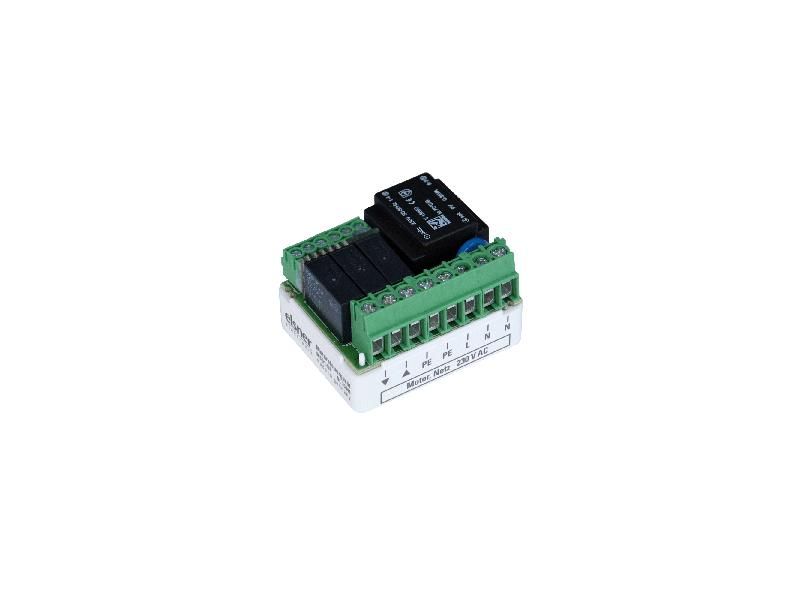

ELSNER 70451 MSG1-UP Intelligent Motor Control Unit

Intelligent motor control devices allow automatic and manual control of 230 V screen or window drives. The devices have inputs for centralized control and a manual button

The input of the switch for a double switch not operated is equipped with a timer, which differentiates between short and prolonged pressure of the switch (step-by-step operation, self-sealing).

With IMSG 230, the switch input is designed for 230 V AC, the MSG1-UP for 8... 28 V. Even the

centralized Up/Down input of the IMSG 230 provides 230 V AC, for example of switches, clocks or control systems such as Solexa, Arexa, WS1 or WS1000. On the centralized entrance, adjacent signals have priority.

The centralized input of the MSG1-UP can be used with voltages of 8... 28 V. This input is also suitable for timers, switches or control units and can be set to dead man or “self-sealing”. The relay on the motor output of the MSG1-UP is a zero-crossing switch with low wear.
