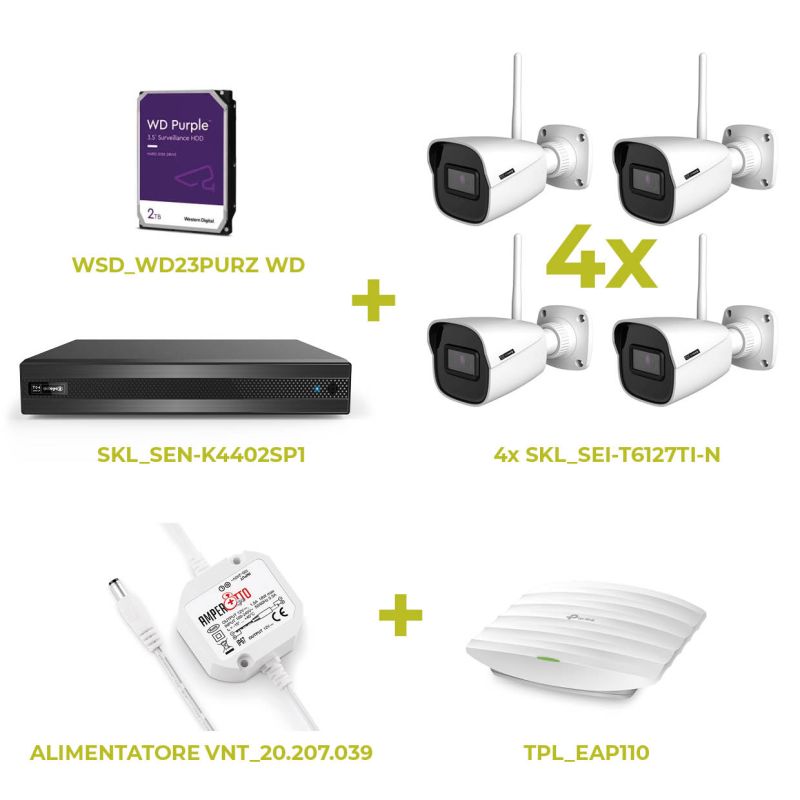

SEN-K4402SP1+4XSEI-T6127TI-N+WD23PURZWD+EAP110

TKH SkilEye 4-channel NVR, Embedded LINUX, max 8MP, max 40Mbps total input, H.264/H.265, Dual Stream Recording, 4 PoE PlugandPlay ports, 1xHDMI (4K) /1xVGA (FullHD), 2 x USB 2.0, 1In/1Out Audio on board IP Camera, no I/O alarms on board, supports on-board IP Camera I/O. Dewarp Fisheye support via Web Client and Mobile App. FACE Detection and ADVANCED VCA 1.0 function on 2 on-board video channels, Statistical Data Processing. 1x 10/100Mbps RJ45 Ethernet network card, Comp

TKH Skilleye Bullet IP 4MPxls camera, WiFi. 1/2.7 inch CMOS Progressive Scan sensor, 4MPxls 2560x1440/25fps resolution, H.265/H.264 compression, Triple Stream. Day/Night with mechanical IR filter (ICR), Sensitivity 0.011 lux F1.2 AGC ON or 0 lux with IR ON, dWDR. VCA BASIC Video Analysis on board: Object Removal Detection, Line Crossing Detection, Region Intrusion. Fixed lens 2.8mm F2.0 FOV 110 degrees. LEDs on board, range 20-30m. Auto/Manual Electronic Shutter, 1/25-1/100.000s. Sensitivity 0.011 LuxF1.2 (AGC ON) or 0 Lux (IR on) in B/W. S/N ratio>50dB. Functions: Automatic White Balance (AWB), Auto Gain Control (AGC), 3D Digital Noise Reduction (3D-DNR), High Light Compensation (HLC), Defog, 3 ROI (Region Of Interest), Motion Detection. 1 RJ-45 Ethernet port (10/100Base-T). Supported protocols: TCP/IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP, FTP. ONVIF Profile S compatible. Web viewer (IE7+, Safari, Chrome, Firefox), CMS for Microsoft Windows & Apple macOS, Smartphone viewer (iPhone/iPad, Androïd), P2P support. Up to 4 users online at the same time. Power supply 12VDC/PoE, <4W. Operating temperature -30 degrees C-+60 degrees C. Protection degree IP67/IK10, Metallic case, Installation on three axes. Dimensions 167.6 x 74.8 x 138.2 mm. Weight 465g.

AMPEROTTO in.100-240Vac 50/60Hz switching power supply us. 12Vdc 1.5A Specific power supply for cameras and LEDs at 12 Vcc 1.5 A

with hard epoxy resin. Smallest dimensions in the world — with cables and connector

3.5" SATA 2000GB (2TB) HARD DRIVE

Technical characteristics: Capacity 2 TB Format 3.5-Inch SATA connector Compatibility Up to 64 cameras per unit for video surveillance security systems with more than 8 slots. SATA Interface Transfer Rate up to 175MB/s Disk Speed (RPM) Recording Technology CMR Cache Size 256MB Warranty 3-Year Limited Warranty Dimensions (L x W x H) 147mm x 101.6mm x 26.1mm Weight 450gms Model Number WD23PURZ Operating Temperature 0°C to 65°C Non-Operating Temperature -40°C to 70°C Certifications BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL

ACCESS POINT WIRELESS N300 Wireless LAN Independent Access Points (Stand At
