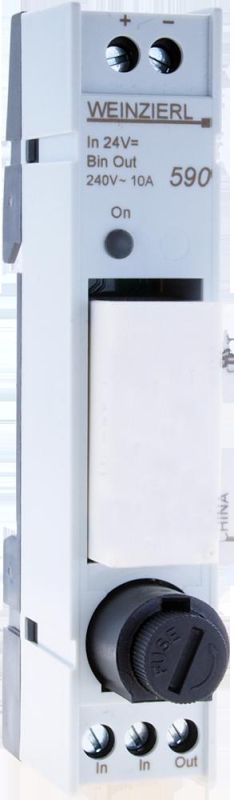

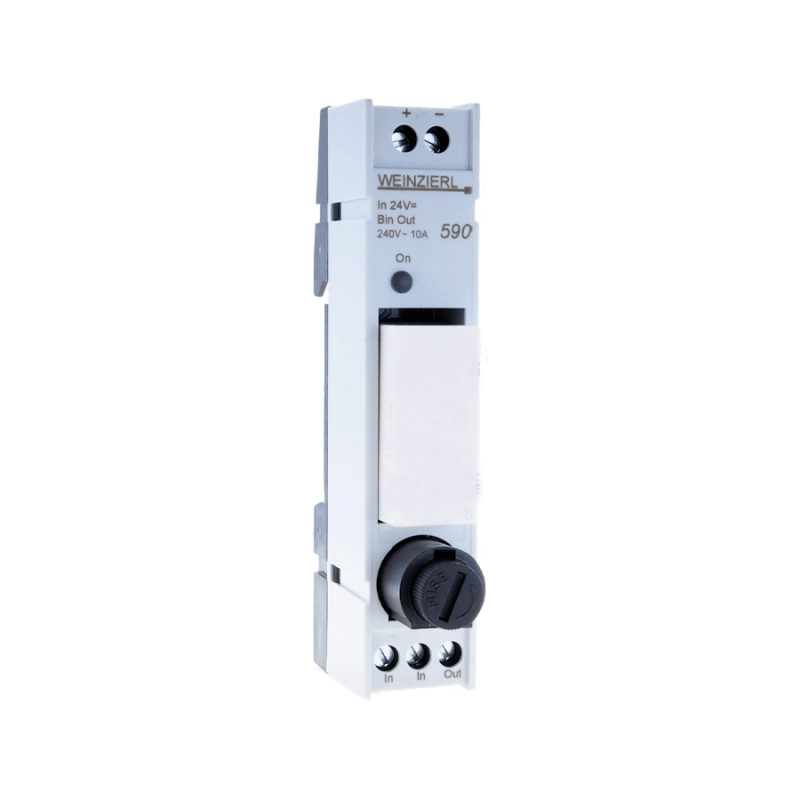

WEINZIERL 5321 MULTI IO EXTENSION SWITCH 590

The Multi IO Extension Switch 590 has an integrated fuse to protect high-quality equipment.

TECHNICAL DATA:

 Mechanical data

Housing: plastic

DIN rail mounted device, width: 1 modules (18 mm)

Weigth: approx 50 g

Indicator and fuse

LED (green) show relay state

Glass fuse 5x20mm, 10 A

Connectors

Screw terminal (2 poles) for 24 V⎓ input

Screw terminal (3 poles) for 230 V∿ output

Input

Input voltage (signal) 24 V⎓

“Holding current” < 2 mA

Output

Fuse 10 A

Relay type: 250 V∿ / 16 A, bi-stable

Depending on load type (capacitive or inductive) the switching power can be reduced significantly.
