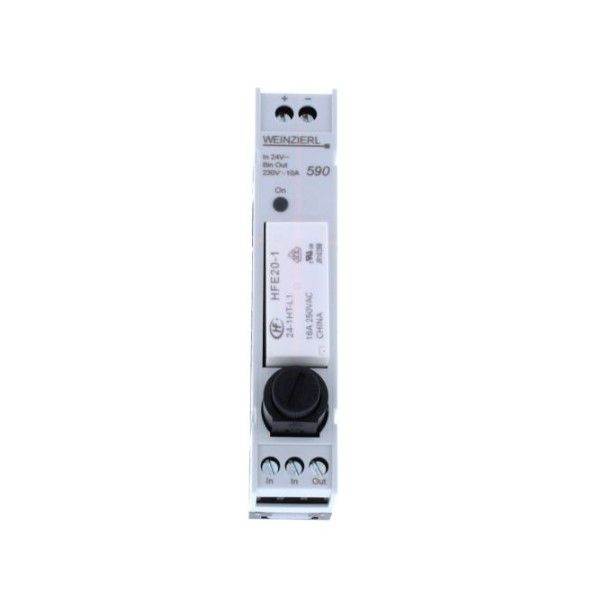

WEINZIERL 5348 MULTI IO EXTENSION SWITCH 590

The Multi IO Extension Switch 590 serves as a power-saving alternative to commercial standard coupling relays. The coupling relay is controlled as a mono-stable relay, but uses a bi-stable relay internally, thus reducing the holding current by up to 95%.

The Multi IO Extension Switch 590 has an integrated fuse to protect high-quality equipment.

Spare relays

Special relays for Multi IO Extension Switch 590

Art.-Nr. 5348

EAN: 42 6026277 348 7

Contact material: Tungsten / AgSnO2

For high inrush currents, e.g. for LED lamps

Input 24 V

Output 230 V / 16 A, bi-stable

Delivery unit: 10 pcs.

TECHNICAL DATA:

Mechanical data

Housing: plastic

DIN rail mounted device, width: 1 modules (18 mm)

Weigth: approx 50 g

Indicator and fuse

LED (green) show relay state

Glass fuse 5x20mm, 10 A

Connectors

Screw terminal (2 poles) for 24 V⎓ input

Screw terminal (3 poles) for 230 V∿ output

Input

Input voltage (signal) 24 V⎓

“Holding current” < 2 mA

Output

Fuse 10 A

Relay type: 250 V∿ / 16 A, bi-stable

Depending on load type (capacitive or inductive) the switching power can be reduced significantly.
