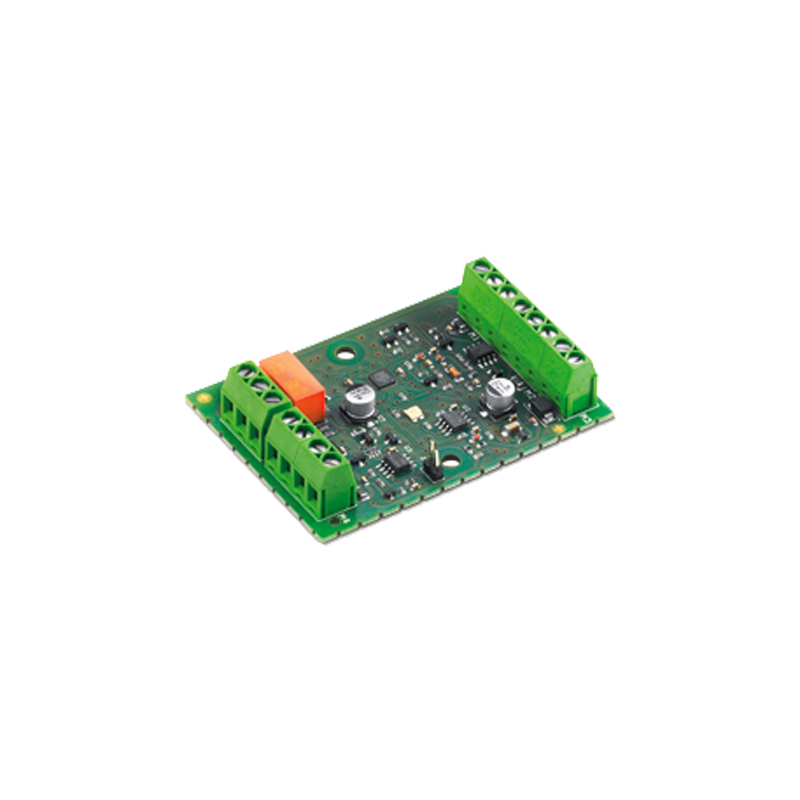

ELKRON 80SC3A00121 Multipurpose 1 input/1 output module

The multipurpose 1 input 1 output digital module can perform the function of output module (MU), input for stable clean contacts (LI) or input for impulse contacts (PI). It allows you to connect conventional detectors with dry contacts (NC/NO), probes or other devices (plates, electromagnetic stops, sirens, etc.). The module has 1 freely programmable input or 1 output. Power supply: 10 ÷ 24Vdc. Absorption: 250uA @ 24Vdc. Relay output: 1A, 30Vdc, resistive load, Alarm repetition output: 12mA max. Operating temperature: -5 ÷ 50 °C. Dimensions: 109x91x30 mm Relative humidity: 95% max non-condensing. EN 54 part 18 and 17 certified (1293-CPD-0137)
