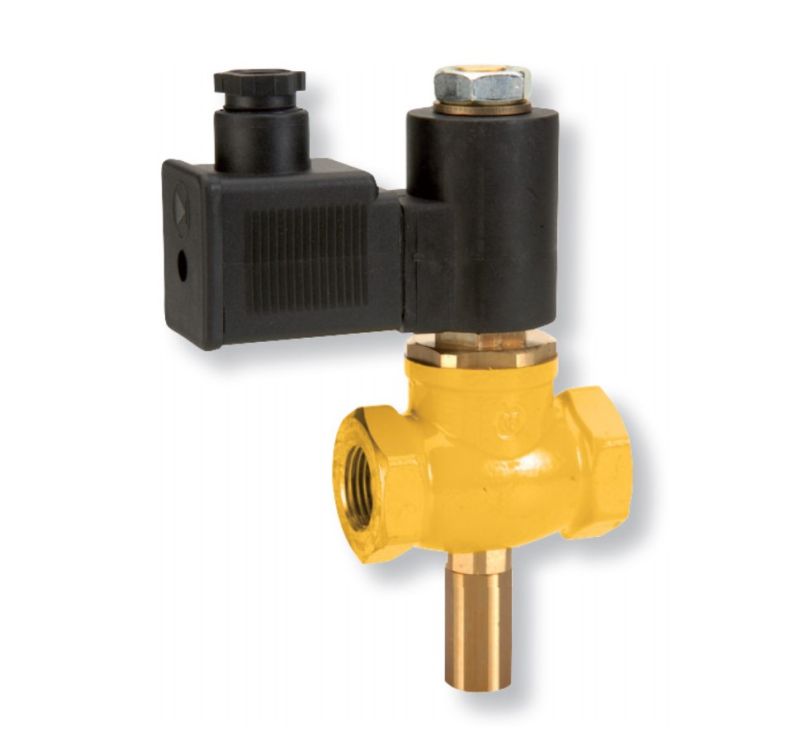

TECNOCONTROL VR944Ex NC manual reset solenoid valve 1" 1/2 230Vca 6 bar ATEX

MT Code: TCC_VR944EX
Manufacturer Code: VR944Ex
Brand: TECNOCONTROL

Description

NC manual reset solenoid valve 1" 1/2 230Vca 6 bar ATEX

These special solenoid valves enrich the range described so far, standing out for their explosion-proof execution with ATEX certification, in fact they have been designed to avoid the risk of explosion in classified areas. Deflagration or explosion which could, in the case of any valve, be triggered by the device itself, precisely due to the effect of the electrical impulse that determines its operation.

ATEX II 3G Ex nA IIC T4 Gc II 3D Ex tc IIID T119 °C Dc IP65

Connections: 1 1/2 inches

Power: 17VA

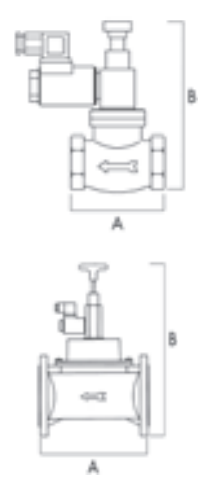

A (mm): 114

B (mm): 186

Power supply: 230Vac

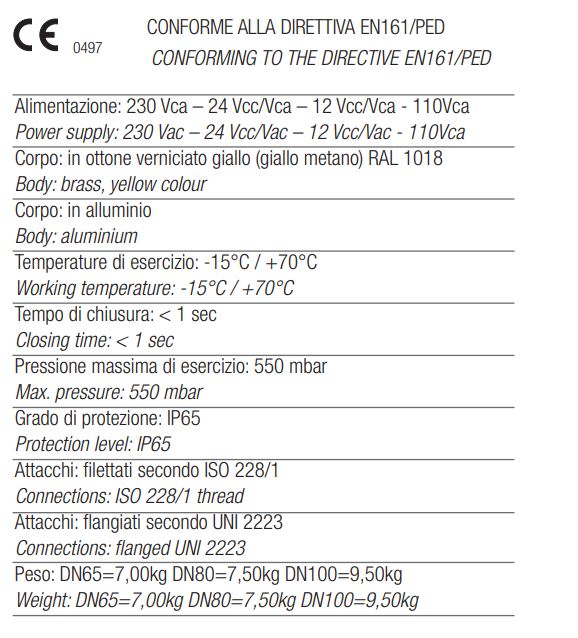

Data Sheet
