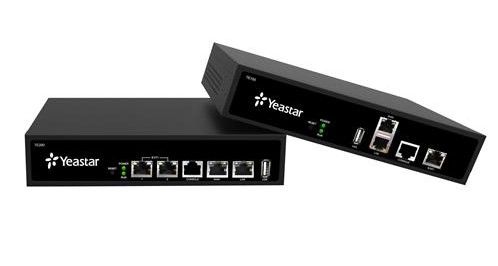

YEASTAR TE100 Neogate TE100 - VoIP PRI Gateway (PRI-VoIP) - 1 PRI E1-T1 port
- MT Code
- YST_TE100
- Manufacturer Code
- TE100
- Brand
- YEASTAR
Description
The Yeastar Neogate TE100 VoIP gateway (1 primary access) allows you to interface an ISDN primary stream (30 channels) to an IPPBX in SIP TRUNKING mode (i.e. external VoIP lines in SIP standard). Or you can connect SIP VoIP lines to a switchboard not equipped with VoIP technology, but equipped with a PRI ISDN interface.
Also available in a TE400 version 4 PRI ISDN TE200 2 PRI ISDN
TE100 supports an ISDN PRI/PRA with up to 30 channels.
The Yeastar Neogate TE100 and TE200 ISDN VoIP gateway consists of dedicated hardware, which therefore does not require additional adapters or PC/server. In a small and elegant case, the necessary electronics are contained.
gateway PRi e1 T1 ms Lync
How do you connect Yeastar TE100?
It connects to the VoIP switchboard equipped with a SIP trunk, using the connection to the corporate LAN network.
An RJ45 port is also provided on the case to which the ISDN primary access can be connected.
Neogate TE100
In the image below are some examples of the utility of Yeastar Neogate TE100 (also available with 2 IDN primary streams, TE200).
Yeastar neogate TE100 scheme
A low-cost but reliable and secure solution (remember that Yeastar products are covered by a 3-year warranty)
It also supports the G.722 codec to guarantee high definition audio on predisposed phones (wideband audio).
It is equipped with a WAN port and a LAN port for network connections.
Among the main features of Neogate TE100 TE200
Neogate TE100 is 1 PRI ISDN
Protocol SIP
Codec G.711, G.722, G.726, G.729, GSM.
1 10/100 LAN port
1 WAN port
Measures 213 x 160 x 44 mm
Weight: 1.2 kg Call routing
rules Caller ID
support name and number Fax
support
DDNS blacklist
function
Backup and restore
Easy to install with configurator via web.
Low energy consumption
Data Sheet
Codice Produttore | TE100 |
---|---|
Brand | YEASTAR |
