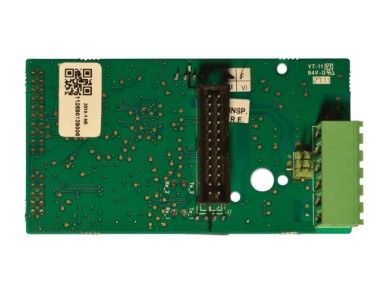

ARITECH FIRE 2010-1-NB Network card for connecting 1X series control units to a local area network
- MT Code
- ARI_2010-1-NB
- Manufacturer Code
- 2010-1-NB
- Brand
- ARITECH FIRE

Network card for connecting 1X series control units to a local area network
General
The 2010-1-NB module is an RS485 interface that allows you to configure the FireNet network on a class B or redundant class A bus. The Firenet network is able to support up to 32 nodes and a maximum of 64 zones. Each node represents a control unit or repeater element of the 1X and 2X series. With lengths greater than 1500 meters or if high immunity to interference is required, the use of an optical fiber connection made through RS485/FO converters is preferred
The applications
The creation of a network allows the repetition of every user interface on the connected control panels.
There are countless reasons for creating a network, including:
i) minimizing cabling and installation costs ii) distributing control logic (central) in the field to minimize the risk of malfunctioning of the entire system iii) in large projects where there is a need to use several control units managed from a single location iv) the possibility of managing conventional and analog power plants through the same network, optimizing the global costs of the system The construction of a network
it also allows interventions on existing plants; for example, the possibility of expanding the system itself without the need to replace the installed plant with a larger model but simply by inserting a new management element, thus keeping the structure already present unchanged.
Installation
The 2010-1-NB module is connected directly to the main board of the control panel. No wiring is thus required between the module and the control unit's electronics
Codice Produttore | 2010-1-NB |
---|---|
Brand | ARITECH FIRE |
2010 1 nb 161721 it
|
908.4 kB |
