Intesis Interface for Mitsubishi Electric and KNX: Comprehensive Control and Energy Savings for Building Automation

Intesis Interface for Mitsubishi Electric and KNX: comprehensive control and Energy Savings for Building Automation

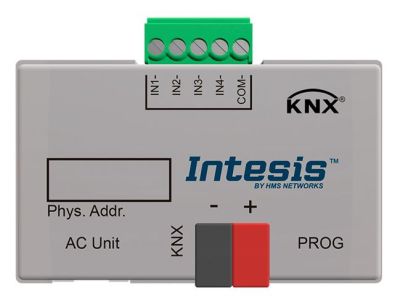

In the field of home automation integration, the Mitsubishi Electric Domestic, Mr. Slim, City Multi, and Lossnay to KNX Interface with Binary Inputs (Item Number: INKNXMIT001I100) stands out as a versatile and highly efficient solution. This interface enables complete bidirectional communication between Mitsubishi Electric air conditioning units and KNX systems, ensuring optimized control and advanced energy management.

Key Features of the Interface

Extensive Compatibility with Mitsubishi Electric

The interface supports units from the Domestic, Mr. Slim, City Multi, and Lossnay ranges, including specific functions such as horizontal vanes control and silent mode for Lossnay systems.

Integrated Binary Inputs

It features four potential-free binary inputs, ideal for integrating external devices like presence sensors or window contacts, providing an additional level of energy optimization.

ETS Configuration

Configuration is straightforward and intuitive through the ETS software, allowing adaptation to the specific needs of each installation.

Seamless Integration with KNX Thermostats

The interface includes all the necessary DPT objects to ensure compatibility with any KNX thermostat on the market. This enables control of the air conditioning unit using the thermostat's built-in temperature sensor, improving comfort and efficiency.

Advanced Energy-Saving Functions

The interface offers features like timeout, open-window mode, and occupancy-based energy saving, significantly reducing energy consumption.

Complete Management from KNX

In addition to controlling and monitoring the unit, the interface includes internal variables such as a running hours counter for preventive maintenance and error indication.

Support for Custom Scenes

Up to five scenes can be saved and executed directly from the KNX system, making automation even more flexible.

Simultaneous Control via KNX and Remote Controller

The air conditioning unit can be controlled simultaneously via the manufacturer's remote controller and the KNX system, ensuring maximum convenience.

Technical Specifications

• Dimensions: 36 x 21 x 59 mm

• Net Weight: 34 g

• Input Voltage: 29 VDC

• Power Consumption: 0.232 W

• Operating Temperature Range: -25 °C to 60 °C

• Housing Material: Plastic

• Certifications: CE, UL, UKCA, KNX

Installation and Safety

Designed to be mounted inside an enclosure, the interface requires anti-static precautions during installation or maintenance to prevent electrostatic discharge that could damage the device.

Applications and Benefits

This interface is ideal for residential, commercial, and industrial applications where advanced climate control and integration with KNX devices are crucial. Thanks to its energy-saving features and remote monitoring capabilities, it is the perfect tool to optimize comfort while reducing operational costs.

Conclusion

The Mitsubishi Electric Domestic, Mr. Slim, City Multi, and Lossnay to KNX Interface is an essential component for those looking to integrate Mitsubishi Electric air conditioning systems within a KNX infrastructure. With advanced functions, ease of configuration, and flexible usage, it ensures high performance and complete indoor climate control.

Available at MT Distribuzione! For more information and technical consultations, contact us to speak with our expert technician.

The MT Distribuzione Team
