KNX TP Push Button 420.1 Secure: Innovation, Security, and Style for Home Automation

11 May 2025
ENG-weinzierl-serie-MATCH-55-pulsante-1280x720

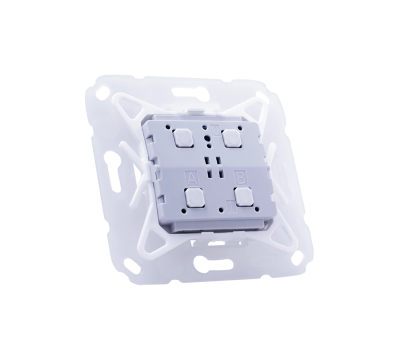

Weinzierl KNX TP Push Button 420.1 Secure:

Innovation, Security, and Style for Home Automation

The new KNX TP Push Button 420.1 secure by Weinzierl redefines home automation. Part of the renowned MATCH 55 series, this device stands out for its combination of advanced functionality, minimalist design, and data security. With significant improvements in both hardware and ETS application, the 420.1 secure is designed to meet the needs of installers and end users in residential and commercial contexts.


Minimalist Design: The Contrast of Style

In a world defined by black and white, the design of the 420.1 secure uses contrast as a visual language. The simplicity of these shades creates a modern, timeless aesthetic that seamlessly integrates into any environment. Standard frames with internal dimensions of 55 x 55 mm and an installation depth of only 11 mm ensure perfect compatibility with 68 mm flush-mounted boxes. This clean approach lends the device a discreet elegance, ideal for contemporary interiors.

Advanced Features: Technology at the Service of Comfort

The KNX TP Push Button 420.1 secure is more than just a button. Its capabilities include:

  • Switching and Dimming: For optimal lighting control.

  • Shutter and Blind Management: Maximizes natural light usage.

  • Scene and Color Control: Customizes the environment as needed.

  • Control Sequences: Advanced programming for daily automation.

  • Value Transmission: Perfect for climate settings and other personalized parameters.

The device also integrates a room temperature controller, supported by an internal temperature sensor. This enables the management of heating, cooling, and ventilation without the need for additional external devices.

Intuitive Interface and Multimedia Feedback

The 420.1 secure offers customizable button configurations, with options for single or double keys. The six bi-color LEDs (blue/red) provide clear visual feedback, while a multi-tone sound generator adds an auditory dimension for discreet notifications, such as a personalized doorbell signal.

Next-Generation Security

The integrated KNX Data Security ensures encrypted and protected communication within the KNX system, preventing unauthorized access and guaranteeing reliability in both residential and professional settings.

Technical Specifications

  • Dimensions: 55 x 55 mm frames, 11 mm installation depth

  • Power Supply: Via KNX bus, approximately 12 mA consumption with active LEDs

  • Interfaces: Connectors for KNX bus, LEDs, and external switches

  • ETS Compatibility: ETS 5 and ETS 6

  • Integrated Sensor: Temperature with control functionality


Conclusion

The KNX TP Push Button 420.1 secure is a cutting-edge solution for those seeking a device that combines design, technology, and security. Perfect for smart home and building automation projects, it is the button that merges extended functionality with minimalist style.

Available at MT Distribuzione!

For more information and technical consultations, contact us to speak with our dedicated technician.

The MT Distribuzione Team
