RingBOX: Zennio's new smart intercom for your KNX solutions

Discover how to automate and control your home intercoms with home automation

Zennio presents RingBOX, the innovative solution for completely integrating your home intercoms into the KNX ecosystem. An intelligent device that transforms the traditional way of managing intercoms, giving you total control, flexibility and advanced home automation integrations.

Discover RingBOX by Zennio

What makes RingBOX special?

RingBOX is a KNX Secure module designed for those who want a modern and versatile solution:

• Up to 4 independent intercoms: Manage different access areas from the same unit

• 8 selectable melodies

  for each intercom, with the ability to customize sounds according to your preferences

• Dynamic volume control: Adjust the sound level (up to 65 dB at 1 meter) according to your needs

• "Do not disturb" mode: Activate/deactivate intercoms when needed

• 5 programmable scenes: Create customized automations for different situations (for example, silent at night, maximum volume during the day)

Simple power supply, hassle-free installation

One of the great advantages of RingBOX is that it does not require a dedicated external power supply. The device works completely with KNX bus voltage (29 VDC), significantly simplifying installation. This makes it ideal for:

• Renovations : No additional cables to run

• New constructions: Direct integration into your KNX home automation project

• Complex installations: Significant reduction in project complexity

Low profile and discrete design

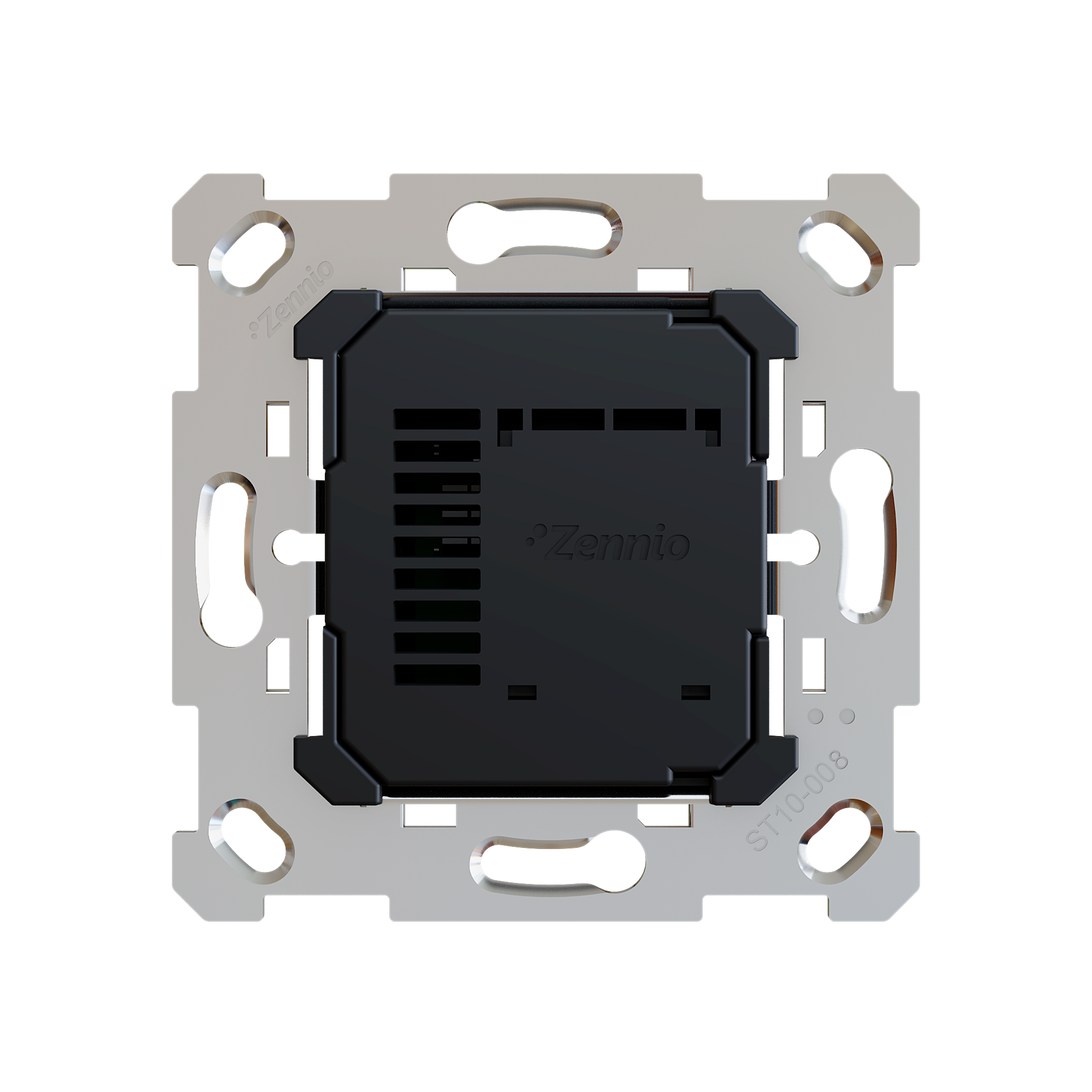

With a thickness of just 9.5 mm from the wall, RingBOX integrates perfectly into any environment without creating unsightly clutter. The device is designed for standard European and Swiss flush mounting, ensuring a professional and refined installation.

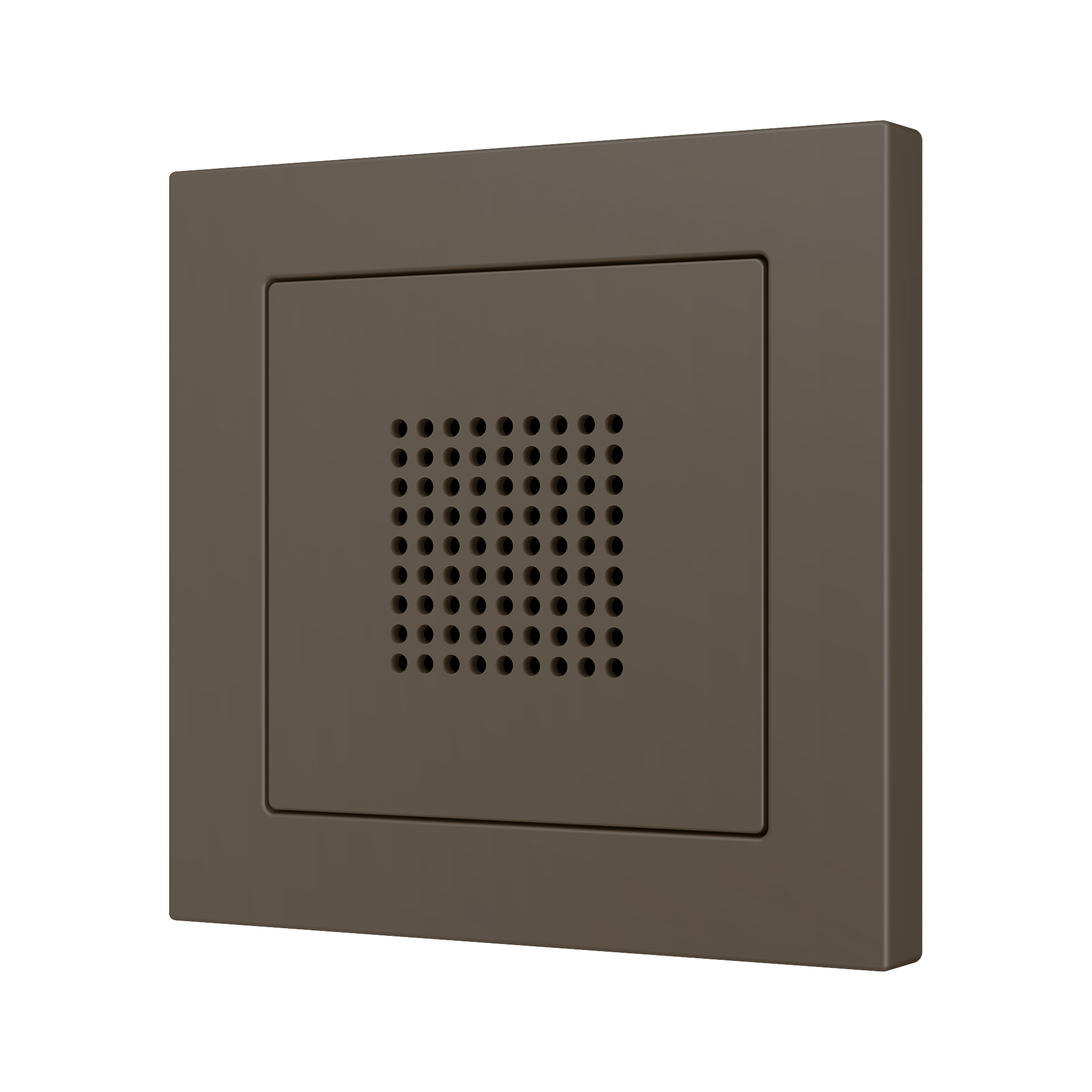

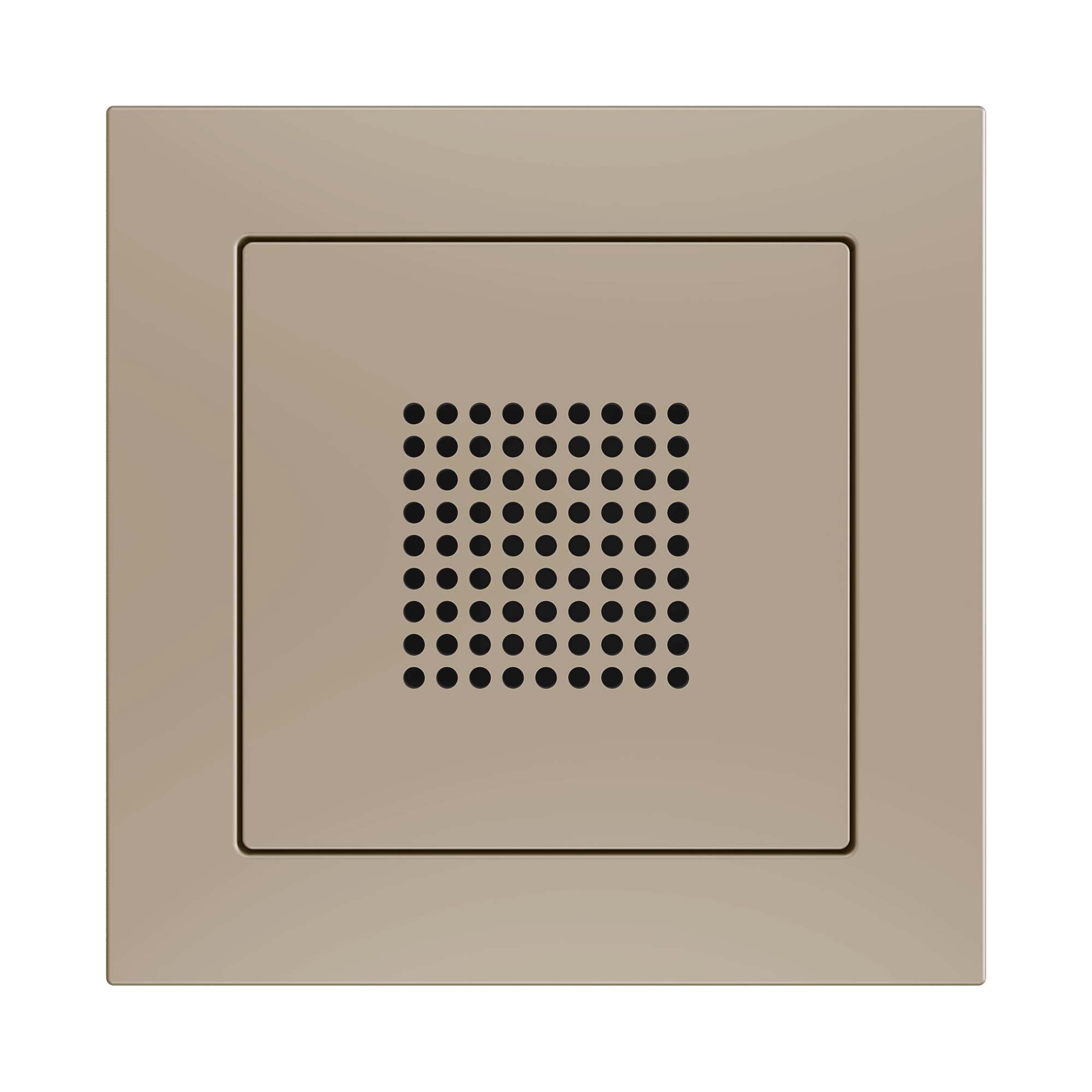

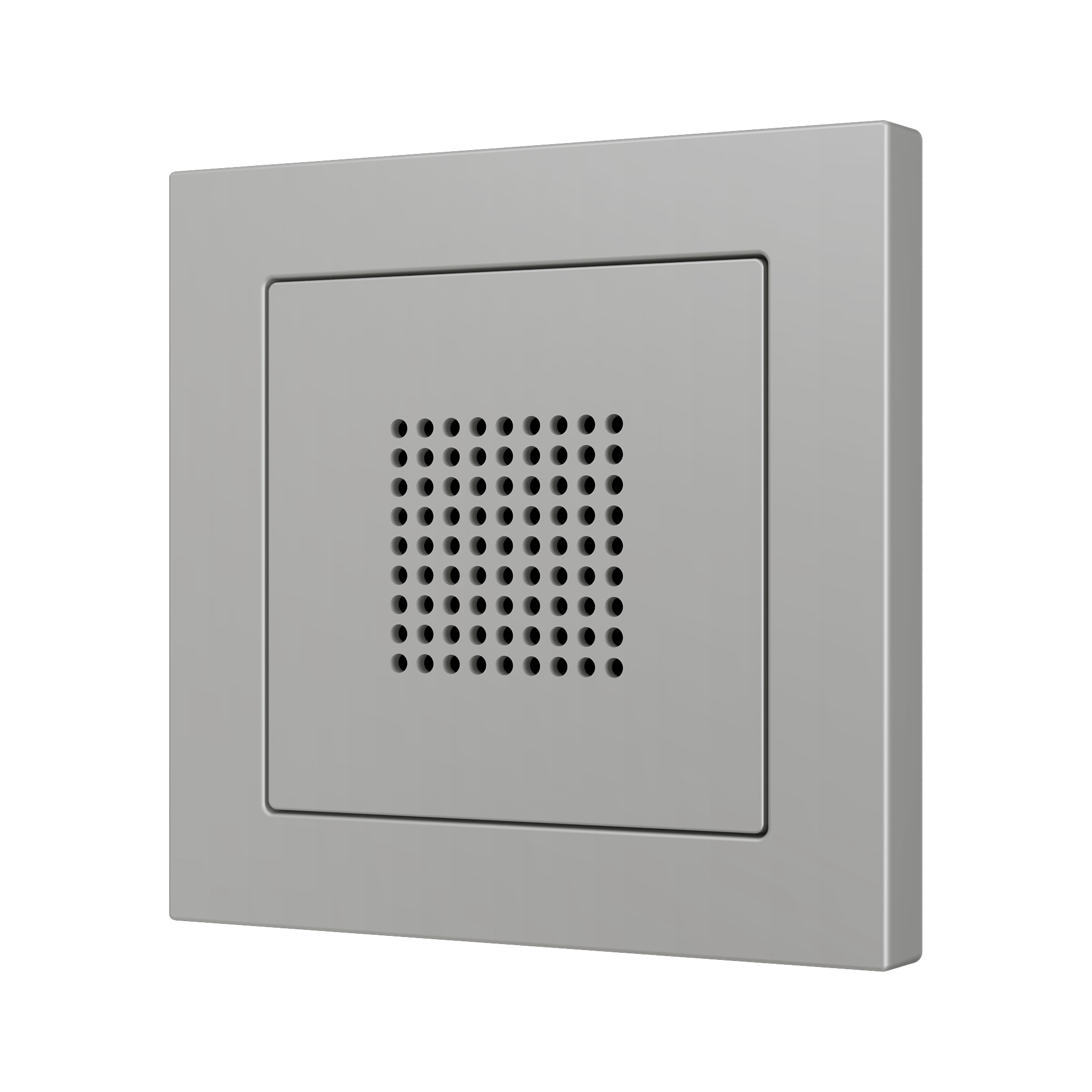

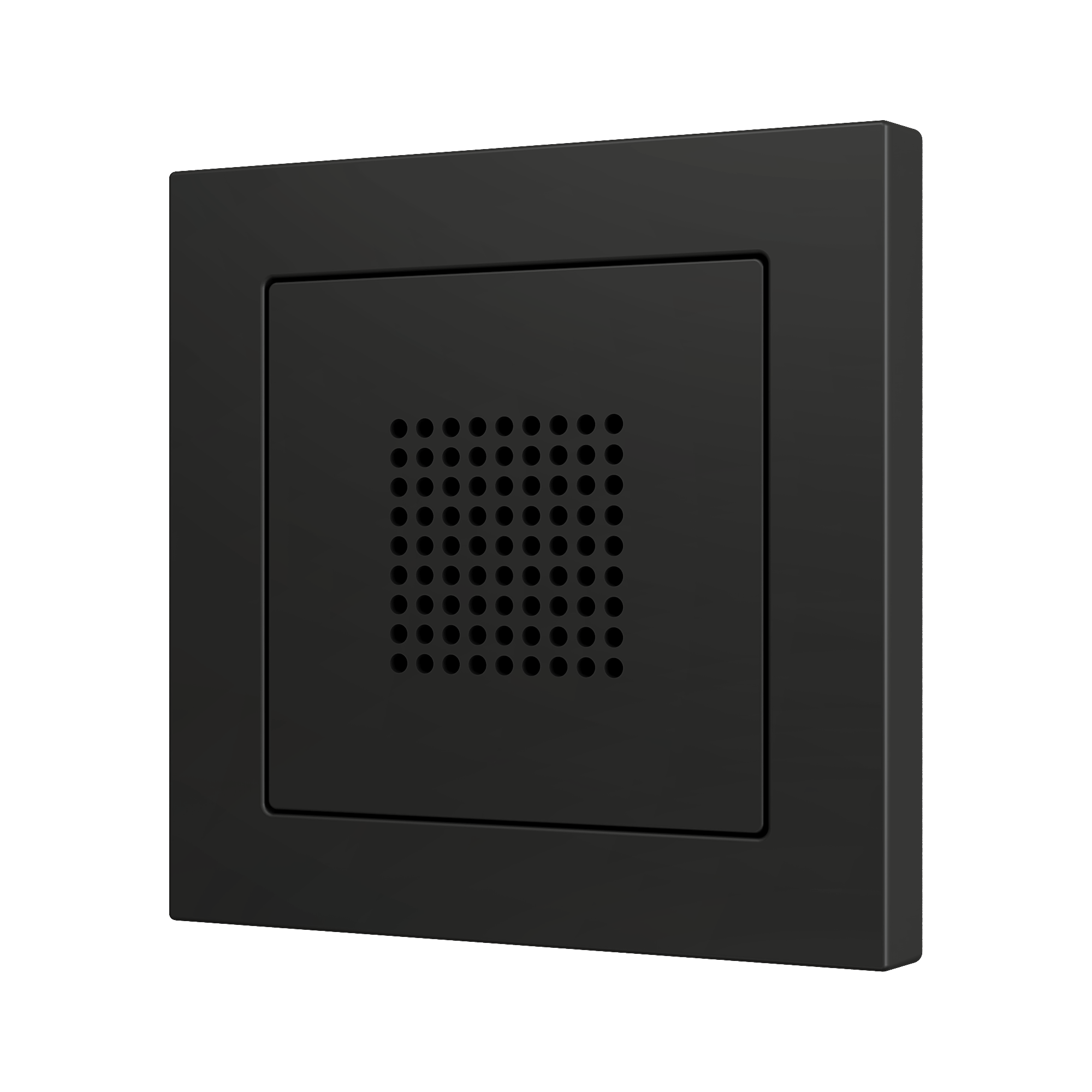

Aesthetic customization: many colors for every style

Zennio offers the RingBOX in multiple finishes, following international RAL standards:

Whatever the style of your home – from minimalist to classic – you'll find the perfect finish.

Security and reliability with KNX Secure

RingBOX integrates the KNX BCU (TP1-256) and supports KNX Data Secure, guaranteeing:

• Encrypted communication on the KNX bus

• Automatic data backup in case of line failure

• Data recovery upon system restart

• CE and RCM certification for regulatory compliance

Technical specifications

Easy to install, simple to program

RingBOX installation was designed to be quick and intuitive:

• Connect the KNX bus to the back of the device

• Attach the metal plate to the flush-mounted box

• Cover with the decorative frame

The programming button and LED indicator make configuration and diagnostics immediate, even for those not experienced in home automation.

An investment towards a smart home

RingBOX represents an important step towards complete and integrated home automation. Whether you're planning a new KNX installation or want to upgrade an existing system, this device offers you the flexibility, security and design that today's home automation expects.

Product code: ZNN_ZSIRBOX

Find it at MT Distribuzione!

To discover all RingBOX features and configure it according to your needs, contact your reference sales representative or:

📧 Email: [email protected]
📞 Phone: 045 509826

Choose RingBOX and transform the way your home communicates with you.
