SLED Roger | the brushless gear motor for leaves up to 1.8 m

SLED by Roger is a low-voltage brushless gear motor for swing gates, designed for intensive use on leaves up to 1.8 metres, without arms, complete with pillar mounting plate.At the heart of the product is IPU technology: an on-board power inverter module, a digital magnetic encoder with 4096 PPR, and FOC (Field Oriented Control). The result is smooth movement, gentle starts and stops, and reduced mechanical wear compared to traditional asynchronous gear motors. The inverter module communicates with the F70/IPU36 control unit via RS485, ModBus protocol.

Code item: SL/180/R

When to install it

Condominiums and high-traffic entrances: 400,000 tested operating cycles, suited to frequent manoeuvres throughout the day.
Commercial premises and public access points: offices, businesses, shared car parks.
Facilities with electrical safety requirements: schools, nurseries, care homes — thanks to the low voltage on the motor side (36V).
Outdoor installations in cold or hot climates: operating range -20°C/+55°C, IP44.
Heavy leaves up to 1.8 m: up to 150 kg (0.8 m) / 100 kg (1.8 m), with 170Nm starting torque.
High-end residential settings: where a quiet, jerk-free movement is a feature the end client will notice.
Gates requiring manual emergency operation: reversible motor, can be opened by hand even with the control unit off (an electric lock is still recommended for system safety).

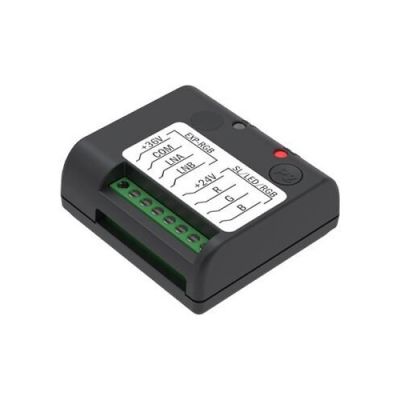

Projects with integrated lighting: RGB option to enhance the entrance aesthetically.

Technical characteristics

Parameter	Value
Actuator type	Reversible
Mains power supply	230V AC - 50/60Hz; 115V AC - 50/60Hz
Motor power supply (inverter)	36V~, variable frequency
Motor control	FOC, sensored, 4096 PPR encoder
Maximum power absorbed	200W
Starting torque	170Nm
Rated torque (S1 100%)	60Nm
Operating speed	0.6 - 6.64 Rpm
Opening time	6-30 s
Maximum leaf weight	150 kg (0.8 m) / 100 kg (1.8 m)
Maximum leaf length	1.8 m
Tested operating cycles	400,000
Degree of protection	IP44
Working temperature	-20 +55°C
Sound pressure	<70 dB(A)
Compatible control unit	F70/IPU36

On-site reminder: the braking resistor B72/BL, supplied with the motor, must be connected to clamps 5-6 of the control unit (for double-motor installations, only one resistor is required). Motor-to-control-unit cable section: 4x1.5 mm² up to 10 m, 4x2.5 mm² up to 20 m, 4x4 mm² up to 30 m.
