SLIM DUAL PLUS by Satel: High-Performance Dual-Technology Motion Detector for Indoor Environments

SLIM DUAL PLUS by Satel: High-Performance Dual-Technology Motion Detector for Indoor Environments

In the electronic security sector, the precision and reliability of motion detectors are essential to ensure effective protection against unauthorized intrusions. The SLIM DUAL PLUS from Satel stands out as an advanced solution for indoor detection, combining PIR and microwave technology with integrated anti-masking features.

Discover SLIM DUAL PLUS by Satel

Dual technology for precise detection

The SLIM DUAL PLUS integrates two types of sensors:

• PIR sensor (passive infrared): detects heat variations caused by the movement of people or animals within the protected area.

• Microwave sensor (MW) in K-band 24 GHz: detects movement through emission and reception of microwave waves, increasing accuracy in complex environments.

The combination of these two technologies significantly reduces the risk of false alarms and ensures reliable detection even under variable environmental conditions.

Coverage area and interchangeable lenses

The detector has a standard detection field of 15 m × 20 m with a 90° angle, suitable for a wide range of indoor applications. Thanks to its modular design, the standard lens can be replaced with:

• LR-CL2 (long-range lens): coverage up to 20 m × 3.6 m

• CT-CL2 (curtain lens): targeted coverage of 16 m × 2 m

This flexibility allows the device to be adapted to corridors, large rooms, or areas with specific detection requirements.

Advanced anti-masking and digital filtering features

The SLIM DUAL PLUS is equipped with microwave-based anti-masking technology, which detects any attempts to cover or obstruct the sensor. Additionally, the device uses:

• Digital motion detection algorithm, optimized to distinguish between real movements and environmental disturbances

• Digital temperature compensation, ensuring consistent performance under varying conditions

• Digital filter for microwave signals, providing immunity to false alarms caused by discharge lamps or electrical interference

Customization and remote management

The detector offers numerous configuration options:

• Adjustable sensitivity for both detection technologies

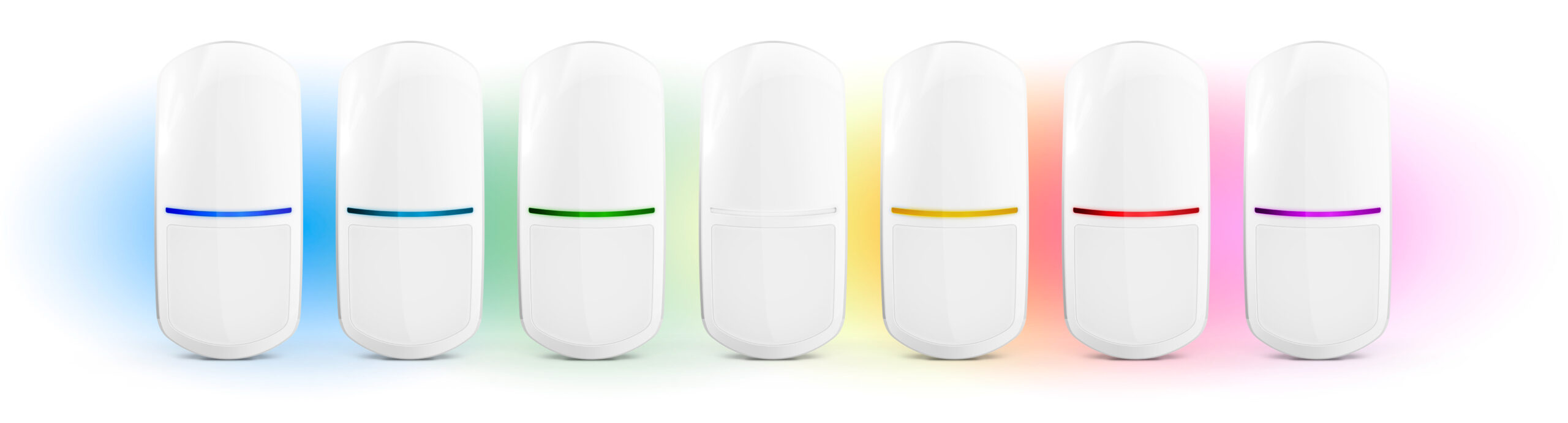

• LED indicator with 4 configurable colors or remote disabling option

• Continuous monitoring of the sensor status and power supply

• Tamper protection against opening the housing

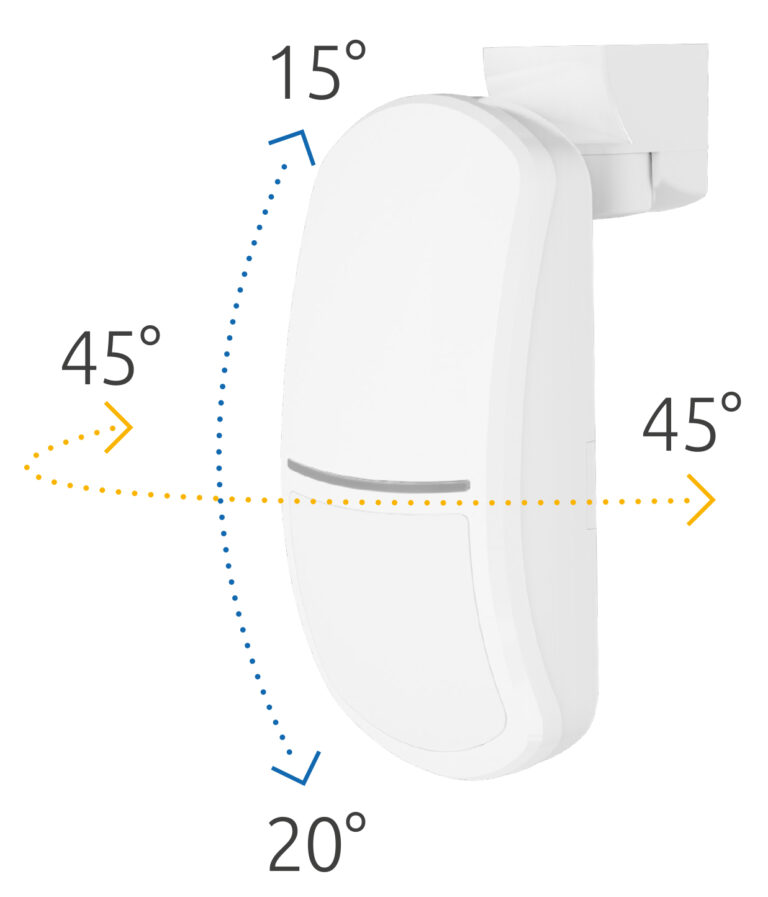

For optimal installation, the device can be mounted on the BRACKET-D (not included), allowing 35° vertical and 90° horizontal rotation, with internal cable routing.

Compliance and reliability

The SLIM DUAL PLUS complies with EN 50131 Grade 2, ensuring high security standards. The integrated balancing resistors (2 × 1.1 kΩ) complete the system, simplifying integration with control panels and advanced security systems.

Conclusion

Thanks to the combination of dual technology, interchangeable lenses, and advanced false alarm filtering, the SLIM DUAL PLUS is an ideal choice for those seeking a high-performance, modular, and reliable indoor detector. It is particularly suitable for residential and commercial applications where precision, security, and customization are essential.

Available at MT Distribuzione! Contact us to speak with our technical team and receive personalized advice.
