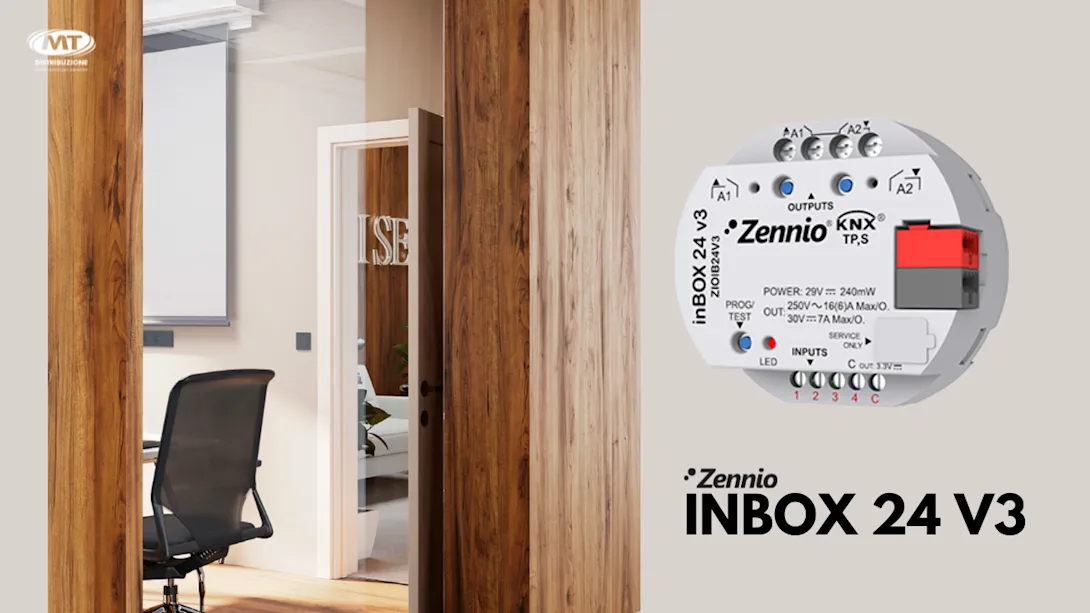

inBOX 24 v3 of Zennio: a versatile and compact KNX actuator for Advanced Automation

inBOX 24 v3 of Zennio: A versatile and compact KNX actuator for Advanced Automation

Zennio's inBOX 24 v3 stands out for its versatility, advanced functionality, and compact dimensions. Ideal for KNX integrations in residential and commercial environments, it provides intelligent solutions for controlling electrical loads, shutters, lighting scenes, and much more.

Design and Installation Flexibility

Thanks to its compact size, the inBOX 24 v3 is designed for installation in:

• Junction boxes.

• Shutter boxes.

• Wall-mounted command mechanisms.

This discreet design ensures seamless integration into automation systems, even in tight spaces, without compromising functionality.

Advanced Technical Features

1. Configurable Relay Outputs

   • Two independent ON/OFF outputs for controlling loads up to 6A per channel, ideal for lights, fans, or small appliances.

   • One shutter channel that supports management with or without slats, offering precision in positioning blinds or shutters.

2. Multifunctional Analog-Digital Inputs The multifunctional inputs allow you to:

   • Connect temperature probes (NTC), with support for Zennio's custom probes.

   • Integrate traditional buttons or switches for manual controls.

   • Use motion sensors to activate lighting scenes or energy-saving functions.

3. Custom Logic

   • Up to 10 configurable logic functions for numerical or binary operations. This capability enables the creation of complex scenarios, such as automatic light activation based on presence and time.

4. Integrated Thermostats The inBOX 24 v3 includes four independent thermostats, each configurable for heating, cooling, or both. This ensures precise climate control in multiple environments.

5. Scene Functionality

   • Storage of customized scenarios, such as "Relax" or "Work," that include settings for lighting, shutters, and climate control.

   • Master Light function for centralized lighting control.

6. Manual Supervision

   • Status LEDs and physical buttons for immediate relay output control, useful for testing and maintenance.

Smart Features and KNX Integration

The inBOX 24 v3 is fully compatible with the KNX standard, ensuring:

• Integration with other KNX devices for creating complex systems.

• Advanced configuration via ETS, with customizable settings for all functions.

• Operational security: the device saves its current state to ensure optimal recovery after a power outage.

Application Benefits

1. Residential Automation

   • Light control to optimize energy consumption.

   • Shutter management to enhance comfort and energy efficiency.

   • Precise temperature regulation in different rooms.

2. Commercial Buildings

   • Creation of lighting scenarios in offices, showrooms, or public areas.

   • Integration with HVAC systems for advanced energy management.

   • Automation of multifunctional spaces.

3. Custom Projects

   • Thanks to its configurable logic, the inBOX 24 v3 adapts to bespoke projects, such as managing greenhouses, hotels, or buildings with specific requirements.

Technical Specifications

• Dimensions: compact for installation in junction boxes.

• Power Supply: via KNX bus.

• Relay Outputs: 2 x 6A, 1 x shutter channel.

• Inputs: 4 analog-digital.

• Scenes: configurable with ETS.

• Operating Temperature: -5°C to +45°C.

Conclusions

Zennio's inBOX 24 v3 is a compact and powerful solution for KNX automation, ideal for projects requiring high efficiency, advanced functionality, and integration in limited spaces. Thanks to its flexibility and ease of configuration, it is the perfect choice for residential and commercial systems.

Available at MT Distribuzione! For information and technical consultations, call us to speak with our reference technician.

The MT Distribuzione team
