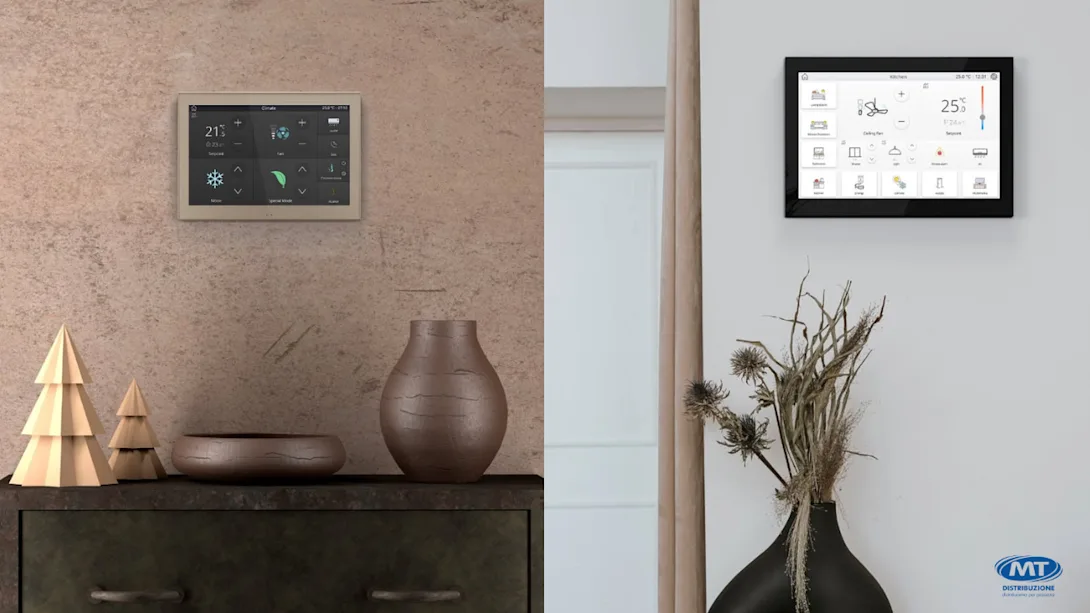

The Zennio Z100 represents an advanced solution for integrated control of residential, commercial, and hospitality environments, thanks to its intuitive user interface and advanced features. This 10-inch capacitive touch panel offers a superior user experience, combining aesthetics and technology in a single device.

Discover the Z100 by Zennio!

Display and User Interface

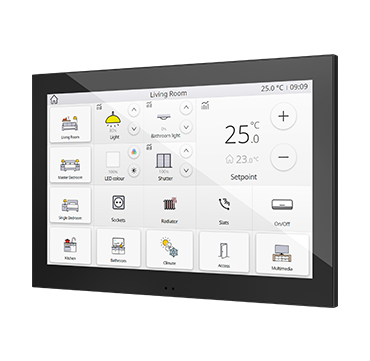

The Z100 features a 10-inch color capacitive LCD display with a resolution of 1280×800 pixels, capable of displaying up to 16 million colors. The user interface is fully customizable, allowing the creation of up to 12 pages with multiple controls per window. Users can configure scenes, schedules, thermostats, and other KNX devices directly from the panel through its intuitive graphical interface.

Advanced Technical Features

• Integrated Sensors: The panel is equipped with brightness and proximity sensors. The brightness sensor automatically adjusts the display brightness according to the surrounding environment, while the proximity sensor activates the panel when movement is detected, offering a smoother and more responsive user experience.

• Climate Control: The Z100 supports up to two independent thermostats, allowing precise temperature control in different zones of the environment. The integrated temperature sensor and analog/digital inputs enable advanced climate management.

• Inputs and Connections: It has 4 configurable analog/digital inputs, which can be used to connect external sensors or control devices. Ethernet and Micro-USB connections allow firmware updates and communication with other devices.

• Power Supply and Reliability: The panel requires an external 24–29 VDC power supply. In the event of a KNX bus failure, data is automatically saved and restored, ensuring operational continuity.

Additional Features (Optional Licenses)

The Z100 offers advanced features that can be activated through optional licenses:

• Remote Control via App: Allows panel control via mobile devices, offering flexibility and accessibility.

• Video Intercom: Compatible with the Zennio GetFace IP system, enabling management of video calls and internal communication.

• Voice Control: Integrates with voice assistants such as Alexa and Google Assistant for hands-free environment control.

Technical Specifications

• Display: 10" color capacitive LCD, 1280×800 px resolution, 16 million colors

• Sensors: Integrated brightness and proximity sensors

• Climate Control: 2 independent thermostats, integrated temperature sensor

• Inputs: 4 configurable analog/digital inputs

• Connections: Ethernet, Micro-USB for firmware updates

• Power Supply: 24–29 VDC external

• Mounting: Flush-mounted on standard European or British double box

• Dimensions: 248.9 x 174 x 39.2 mm (projection 11.8 mm)

Conclusion

The Zennio Z100 is a versatile and powerful solution for intelligent environment control, combining elegant design with advanced functionality. Its integration with the KNX system and customization options make it ideal for a wide range of applications, from residential to commercial. With the addition of optional licenses, the Z100 provides complete and flexible control, meeting the needs of every user.
