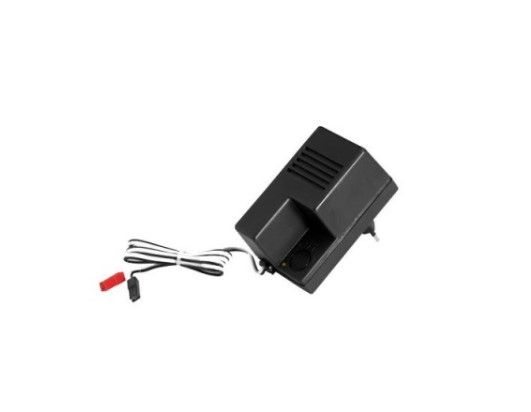

KERT KVIK50/6 O=7.2Vdc 0.5A linear battery charger

O=7.2Vdc 0.5A linear battery charger

Lead-acid battery charger. Input voltage: 230Vac Output voltage: 7.2Vdc Output current: 0.5A It is suitable for the backup charge of lead acid batteries. The charge takes place at a constant voltage and a limited current. Thanks to the automatic deactivation, the battery can remain permanently charged. The chargers in this series are equipped with a floating charging algorithm. With this type of charge, it is possible to make the most of the battery capacity, significantly reducing the damage caused by an incorrect charge. This makes it suitable for lead acid battery charging. For a correct use of the charger, it is recommended to carry out the charging cycle with a current equal to about 1/10 of the nominal battery current. A 12Vdc 24Ah battery, for example, should be charged with a current of about 2.4A.

Data Sheet: Input Voltage: 230.00 Vac Frequency (Hz): 50÷60 Output Voltage: 7.20 Vdc Current at full capacity (A): 0.50 Current limitation/protection: 0.6 Input protections: Fuse Output protections: Overload Signals: LED Battery type: Lead-acid IP protection: IP20 Operating temperature (°C): -10 ÷ 40 Humidity (%): 5 ÷ 95 Input connections: Europlug CEE7/16 plug Output connections: Cable with female faston 4.8 mm Weight (kg): 0.47 Dimensions (mm): L 55.00 x H 90.00 x D 100.00
