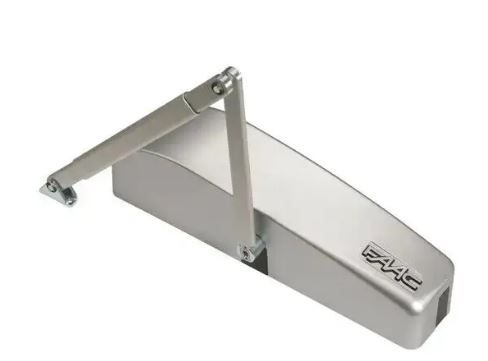

FAAC 1054152 Automation for hinged doors OPERATOR 950N2 AL

Automation for hinged doors OPERATOR 950N2 AL

Passage compartment (mm): 700 ÷ 1400 Max door weight with articulated arm (Kg): 367 Kg - 700 mm; 92 Kg - 1400 mm Maximum weight of door with flap arm (Kg): 286 Kg - 700 mm; 71 Kg - 1400 mm With electronic equipment, function selector and cover case in anodized aluminum The 950N2 automation, in compliance with EN16005, allows you to move the door, with a weight of over 360 Kg, in absolute silence and in continuous service. The cover case can be made of anodized aluminum or ABS shaped in an innovative design. Model: 950N2 Network supply voltage: 220-240 V~ - 50/60 Hz Max power: 100 W Stand-by power without accessories: 5 W Frequency of use: 100% Electric motor: Motor powered at 24V Maximum accessory load: 1A - 24V Electric lock supply voltage: (N.O./N.C.) 24V/500mA max Dimensions (LxDxH): 530x160x105 mm Weight: 10 Kg Operation without mains voltage: Manual opening to push/pull - Spring closure Maximum opening angle of door: 100° ÷ 125° opening: 4 ÷ 10 s (adjustable) Closing speed adjustment: 4 ÷ 10 s (adjustable) Partial opening adjustment: 10% ÷ 90% of total opening Pause time: 0 ÷ 30 s Night break time: 0 ÷ 90 s Encoder: Standard protection sensor monitoring (EN16005): Standard (exclusive) Low Energy Movement (EN16005): Standard (excluded) Ambient operating temperature: -20°C ÷ +55°C Degree of protection: IP 23 (for internal use only) Compliance with standards: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1; EN13849-2
