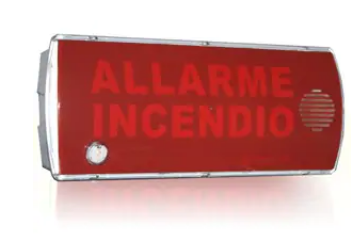

NOTIFIER PAN1-EU Optical/acoustic panel

Optical/acoustic panel certified in accordance with EN 54-3 and EN 54-23. PAN1-EU is a wall panel designed and designed for all fire detection system installations. where the alarm signal must be associated not only with an acoustic buzzer warning with an optical indication. The Panel has been entirely designed and built in compliance with EN 54-3/23 standards. With non-combustible materials (ABS or V0) and non-propagating. The films with inscriptions are in PMMA (Polymethyl Methacrylate) with slow flammability. The wordings. on a red background. are highlighted when the panel is active. Nominal supply voltage. 24Vcc. Power. 2.6W at 24V. DIP1=OFF 100mA DIP1=ON 110mA. depending on the chosen flash frequency. FLASH. 0.6Hz or 1.1Hz frequency. BUZZER. Intermittent type of sound with a frequency of 3000Hz.
