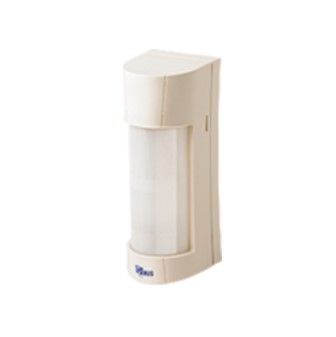

AVS ELECTRONICS 1132147 Double sided double sided infrared sensor for outdoor two-way radio with anti masking

Double-sided double sided infrared sensor for outdoor two-way radio with anti-masking.

- Double-sided passive infrared detection type (dx+sx)

- Range from 3 to 12 meters per side

- Active dual IR anti-masking

- Adjustable sensing distance

- Frequency: FM 868 MHz

- multi-frequency

- Bidirectional

- Radio range: up to 700 m in the open field

- Communication: alarm

- tampering

- battery

- survival

- sensor model

- battery voltage

- Operating temperature

- Simplified programming: self-learning in the control unit

- Setting operating parameters directly from the control unit, from the PC or from the MY AVS MANAGER APP

- Accelerometer for Tamper signaling

- Digital thermal compensation

- Light filter

- Coverage angle up to 10°

- Installation height 1.2 meters

- Animal immunity

- Absorption at rest 15 μA

- Alarm absorption 34 mA

- Radio alarm

- Antimask radio signaling

- Tamper radio reporting

- Low battery radio alert

- Survival radio signaling

- Walk test with buzzer activation and LED

- 3.6 Vdc 2.2 Ah lithium battery, included

- Battery life 2 years with low active consumption

- Dimensions: (D x W x H) 68.3 x 75.4 x 189.4 mm

- Compatibility: RAPTOR control panels
