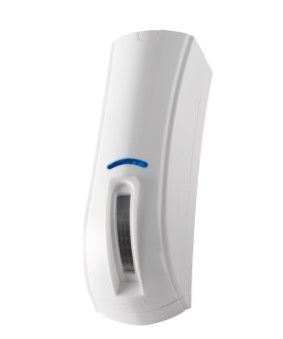

AVS ELECTRONICS 1132144 ONE PA WS 4 Two-Way Radio Curtain Effect Outdoor Infrared Sensor

Infrared curtain effect sensor via radio, with 8 m coverage.

- Passive infrared with Fresnel lens with curtain cover

- Frequency: FM 868 MHz

- Bidirectional multi-frequency

- Radio range: up to 700 m in the open field

- Communication: alarm - tampering - battery - survival - masking - sensor model - battery voltage - operating temperature

- Simplified programming: self-learning in the control unit

- setting operating parameters directly from the control unit, from the PC or from the MyAVSManager APP

- Coverage area 8 m max. with a maximum opening of 1.8 m

- Installation height from 1.9 m to 2.2 m

- ANTI-MASKING function with IR ACTIVE

- Animal immunity with optional lens filter

- Opening protection tamper

- ACCELEROMETER device for reporting the tear

- Power supply: 3.6 Vdc, 2.2 A lithium battery

- Autonomy: about 2 years by activating the reduced consumption function

- Dimensions (LxWxH): 44 x 40 x 123 mm

- Compatibility: RAPTOR control panels

- Degree of protection: IP 54
