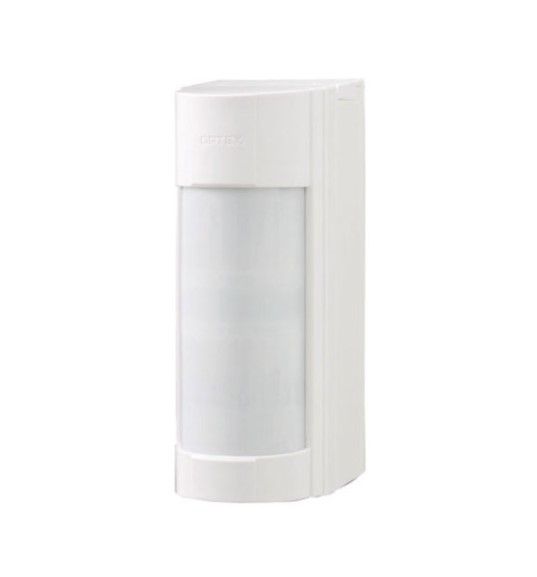

ELDES EWVXD3 Outdoor passive infrared detector with dual PIR+microwave technology with anti-masking, 14 adjustable detection zones, high immunity to false alarms, sensitivity adjustment and pulse counting
- MT Code
- ELD_EWVXD3
- Manufacturer Code
- EWVXD3
- Brand
- ELDES
Description
Outdoor passive infrared detector with dual PIR+microwave technology with anti-masking, 14 adjustable detection zones, high immunity to false alarms, sensitivity adjustment and pulse counting, adjustable range to m 2, m 5, m 8 and m 12 with selectable opening up to 90°. IP54 housing.
The VX Infinity™ series provides extremely reliable and stable motion detection functions, reducing false alarms and non-detection, even in extremely adverse environmental conditions.
PERFORMANCE
- Dual PIR+microwave technology with anti-masking
- 14 adjustable detection zones
- High immunity to false alarms
- Pet immunity
- Installation height from m 0.80 to m 1.20
- Three-level sensitivity adjustment and pulse counting
- Detection at m 12, 90° adjustable on 4 levels
- Anti-tampering contact
- Supplied with 3V lithium battery
- Radio range increased to 3000 m in free area

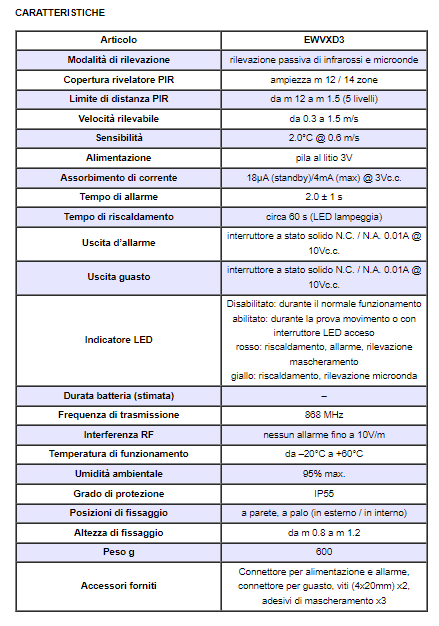

Data Sheet
| Feature | Value | Unit of measure |
|---|---|---|
| Codice Produttore | EWVXD3 | |
| Brand | ELDES |
