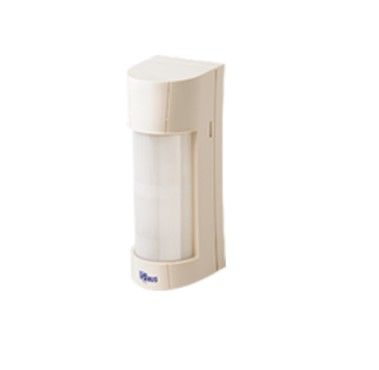

AVS ELECTRONICS 1132126 Triple technology outdoor sensor with anti ma

Triple technology outdoor sensor with anti-masking via two-way radio

- Type of dual passive infrared and 10.525 GHz microwave detection

- Range from 3 to 12 meters

- Anti-masking with active IR

- Accelerometer for tamper signaling

- Digital thermal compensation

- Light filter

- Coverage angle up to 100°

- 180° horizontal plane adjustable

- Installation height: 1.2 meters with standard lens - 2.2 meters with optional SSL lens

- Animal immunity

- Absorption at rest 15 μA - Absorption in alarm 34 mA

- Frequency: FM 868 MHz

- Bidirectional multi-frequency

- Radio range: up to 700 m

- Communication: alarm - tampering - battery - survival - masking - sensor model - battery voltage

- Operating temperature

- Simplified programming: self-learning in the control unit

- Setting operating parameters directly from the control unit, from the PC or from the MyAVSManager APP

- Walk test with buzzer activation and LED

- 3.6 Vdc 2.2 Ah lithium battery, included

- Battery life 2 years with low active consumption

- Dimensions: (D x W x H) 68.3 x 75.4 x 189.4 mm

- Compatibility: RAPTOR control panels
