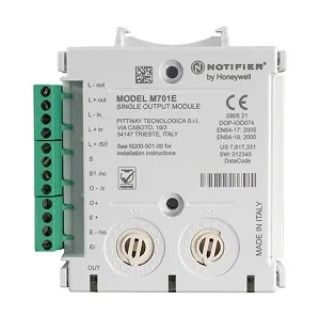

NOTIFIER M701E MODULE 1 OUTPUT

Output module usable with addressed analog control panels. The output can be controlled or with potential-free exchange contact. The module is addressed by means of rotary selectors numbered from 01 to 159. This is equipped with a green LED that blinks normally and off in alarm. The module has a short circuit isolator. Integrated DIN bar support. CPR certificate in accordance with EN54 standards parts 17 and 18. 15-30 Vcc power supply. Rest current of 310 microA and 510 microA with active LED. Operating temperature from -20°C to +60°C. Relative humidity up to 95%.
